Hyundai Elantra: Engine Control System / Variable Charge Motion Actuator (VCMA) Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Control/Fuel System / Engine Control System / Variable Charge Motion Actuator (VCMA) Schematic Diagrams

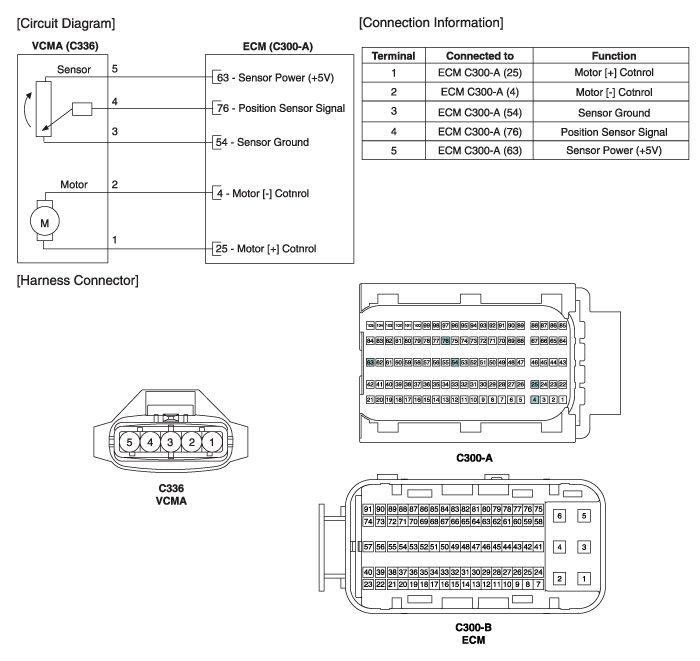

Circuit diagram

Variable Charge Motion Actuator (VCMA) Specifications
Specification Motor ItemSpecificationCoil Resistance (?)3.4 ~ 4.4 [20°C(68°F)] Position sensor ItemSpecificationCoil Resistance (k?)3.44 ~ 5.16 [20°C(68°F)] ...

Variable Charge Motion Actuator (VCMA) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Disconnect the VCMA connector. 3. Check that the VCMA is not stuck by foreign material. 4. Measure resistance between motor (+) and (-) c ...
