Hyundai Elantra: Brake System / Vacuum Pump Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Brake System / Brake System / Vacuum Pump Components and Components Location

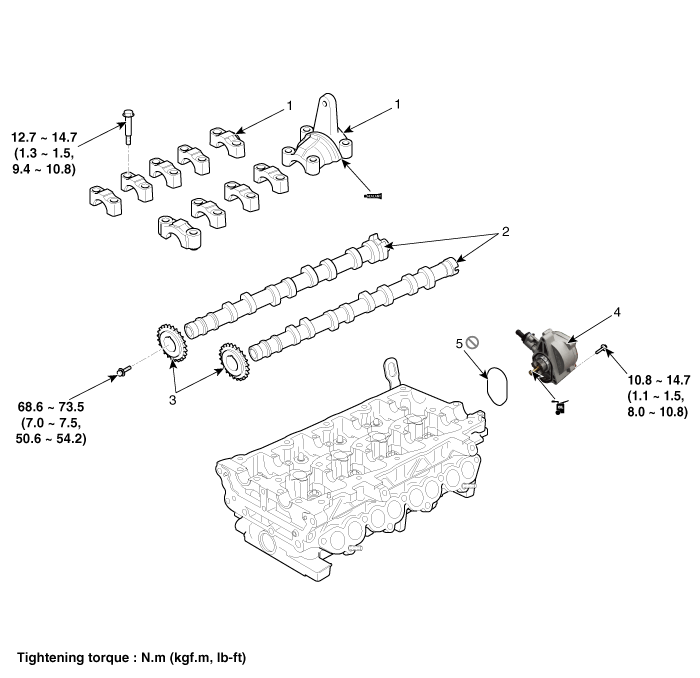

Components
[UII 1.6]

1. Camshaft bearing cap
2. Camshaft
3. Camshaft sprocket
4. Vacuum pump
5. Vacuum pump gasket

Brake Booster Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depress ...

Vacuum Pump Repair procedures
Removal 1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Remove the timing chain. (Refer to Timing System - "Timing Chain") 3. Remove the ...
