Hyundai Elantra: Timing System / Timing Chain Cover Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Timing System / Timing Chain Cover Components and Components Location

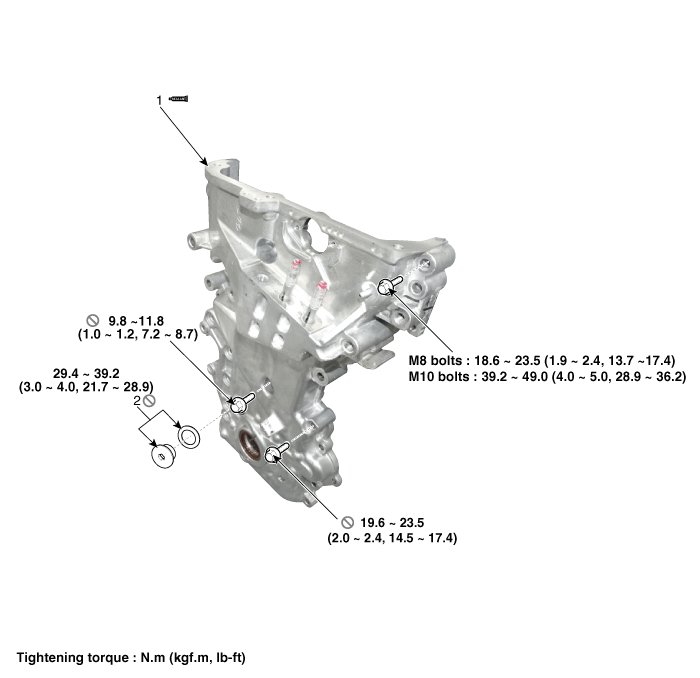

Components

1. Timing chain cover
2. Service plug bolt & gasket

Front Oil Seal Repair procedures
Replacement 1. Remove the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley") 2. Remove the front oil seal (A). 3. Apply engine oil on the edge of new oil seal ...

Timing Chain Cover Repair procedures
Removal Engine removal is not required for this procedure.     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connector ...
