Special Service Tools

Tools (Number and name)	Illustration	Use
09200-3N000 Engine support fixture (Beam)		Removal and installation of the transaxle. Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000). ?Permit operating with 09200-38001. ?Refer to the engine support fixture assembly drawing below.
09200-2S000 Engine support fixture (Supporter)		Removal and installation of the transaxle. Use this supporter (SST No. : 09200-2S000) with the beam (SST No. : 09200-38001/3N000). ?Refer to the engine support fixture assembly drawing below.
09200-2W000 Adapter		Removal and installation of the transaxle. Use this beam (SST No. : 09200-38001/3N000) with the adapter (SST No. : 09200-2W000) ?Refer to the engine support fixture assembly drawing below.
09452-26100 Oil seal installer		Installation of the differential oil seal in the transaxle case and housing side(2WD). [Using with bar (SST No.09231-H1100)]
09231-H1100 Bar		Installation of the differential oil seal in the transaxle case and housing side. [Using with oil seal installer (SST No.:09452-26100)]
09480-A3800 Inhibitor switch neutral fixed pin		When installing the manual control lever on the inhibitor switch, used to align the neutral position.

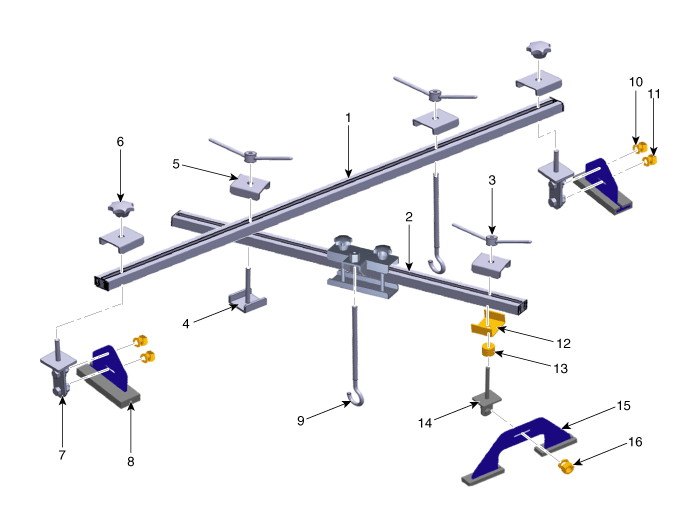

? Engine support fixture special tool assembly drawing

1. Main bar
2. Sub bar
3. Handle
4. Stopper
5. Stopper
6. Knobe
7. Adapter
8. Supporter

9. Hanger
10. Washers
11. Nut
12. Stopper
13. Spacer
14. Adapter
15. Supporter
16. Nut
