Hyundai Elantra: Smart Key System / Smart Key Unit Schematic Diagrams

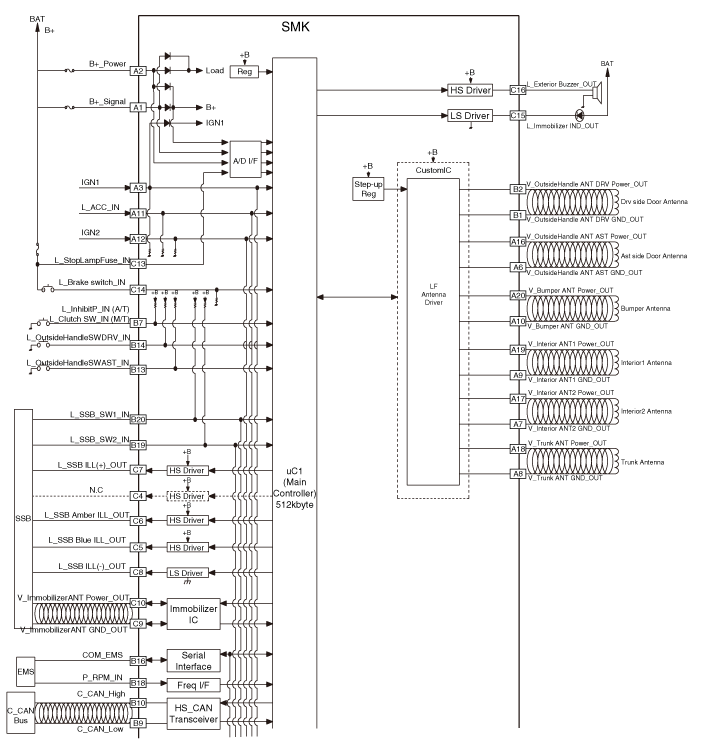

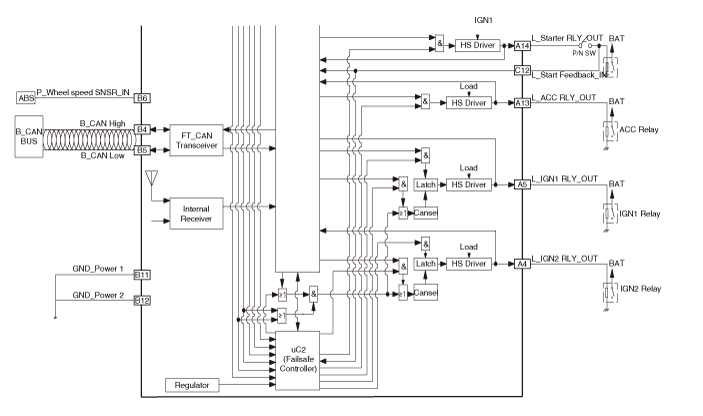

Circuit Diagram

Smart Key Unit Components and Components Location
Components (1) NoConnector AConnector BConnector C1BAT (+)_SignalDriver's door antenna_GND-2BAT (+)_PowerDriver's door antenna_Power-3IGN 1--4IGN 2_Relay outputB-CAN (High)SSB LED (OFF)5IGN 1_Rel ...

Smart Key Unit Repair procedures
Removal Smart Key Unit 1. Disconnect the negative (-) battery terminal. 2. Remove the glove box. (Refer to Body - "Glove Box Upper Cover Assembly") 3. Remove the smart key unit (A) after ...
