Hyundai Elantra: Seat Electrical / Seat Heater Switch Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch Schematic Diagrams

Circuit Diagram

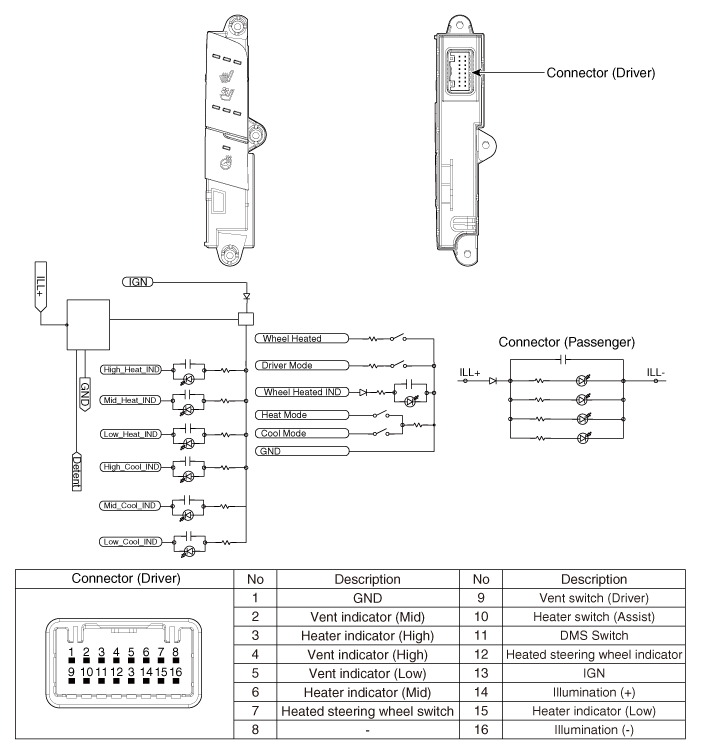

[Front Seat Heater Switch (Driver)]

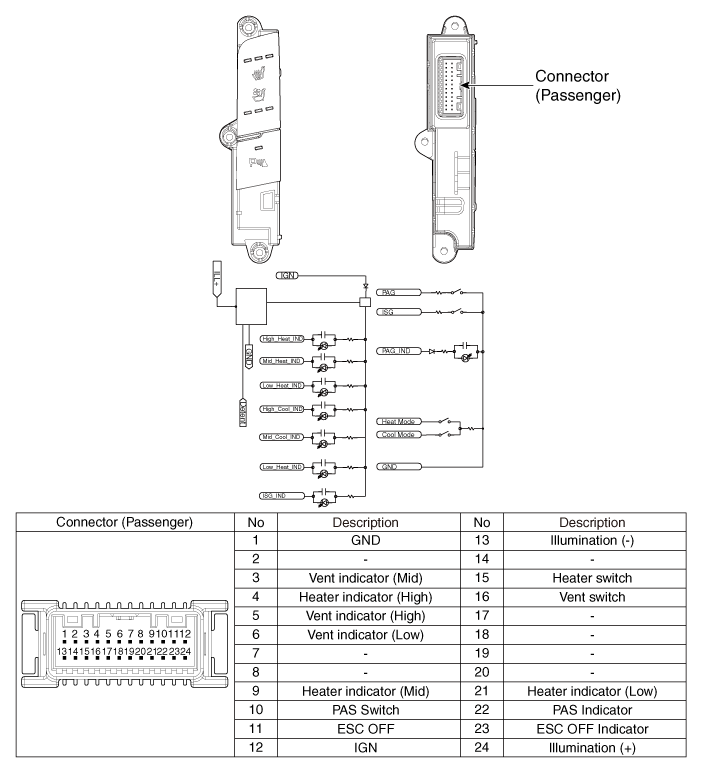

[Front Seat Heater Switch (Passenger)]

[Rear Seat]

Seat Heater Switch Components and Components Location

Components [Front Seat] [Rear Seat] ...

Seat Heater Switch Repair procedures

Removal [Front Seat] 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console assembly. (Refer to Body - "Floor Console Assembly") [Rear Seat] 1. Disconnect the nega ...
