Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch Components and Components Location

Components

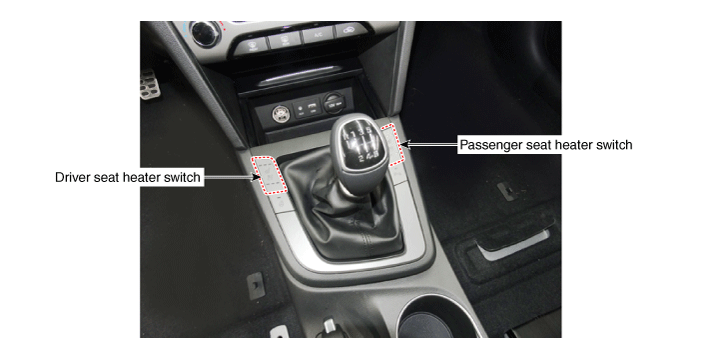

[Front Seat]

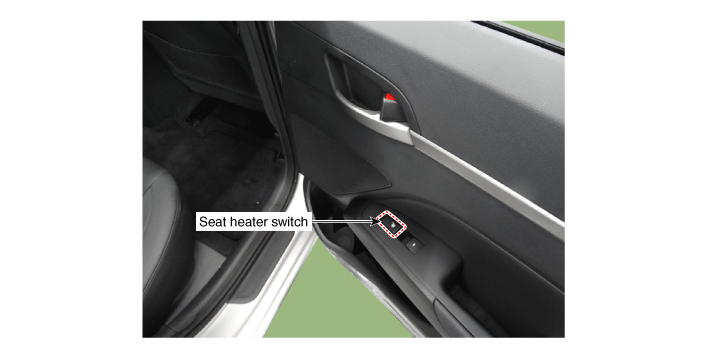

[Rear Seat]

Seat Heater Repair procedures
Inspection Front Seat Heater 1. Check for continuity and measure the resistance between terminals No 3 and No 6. Standard value Driver / Assists (cushion + back) : 1.65?±10%/23°C 2. O ...

Seat Heater Switch Schematic Diagrams
Circuit Diagram [Front Seat Heater Switch (Driver)] [Front Seat Heater Switch (Passenger)] [Rear Seat] ...
