Hyundai Elantra: Seat Electrical / Seat Heater Schematic Diagrams

Circuit Diagram

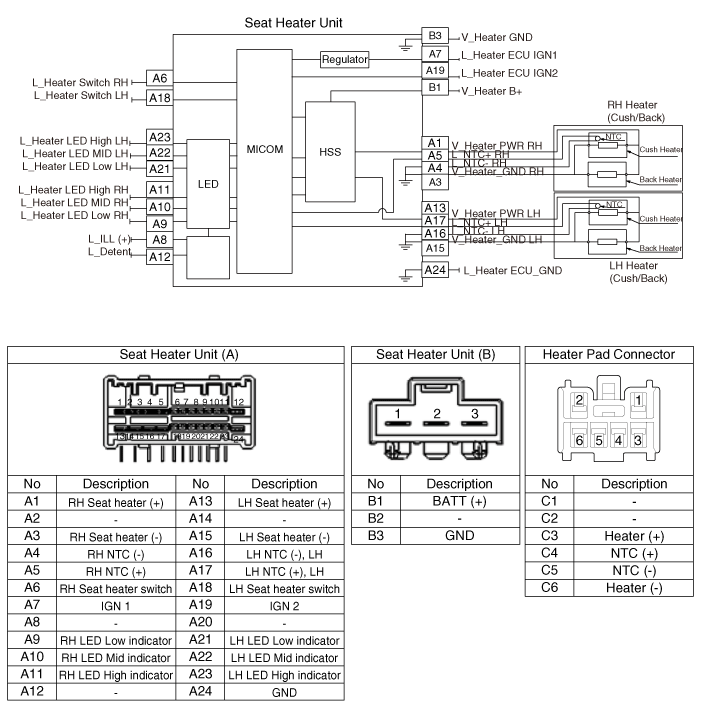

[Front Seat Heater (Non-Air Ventilation)]

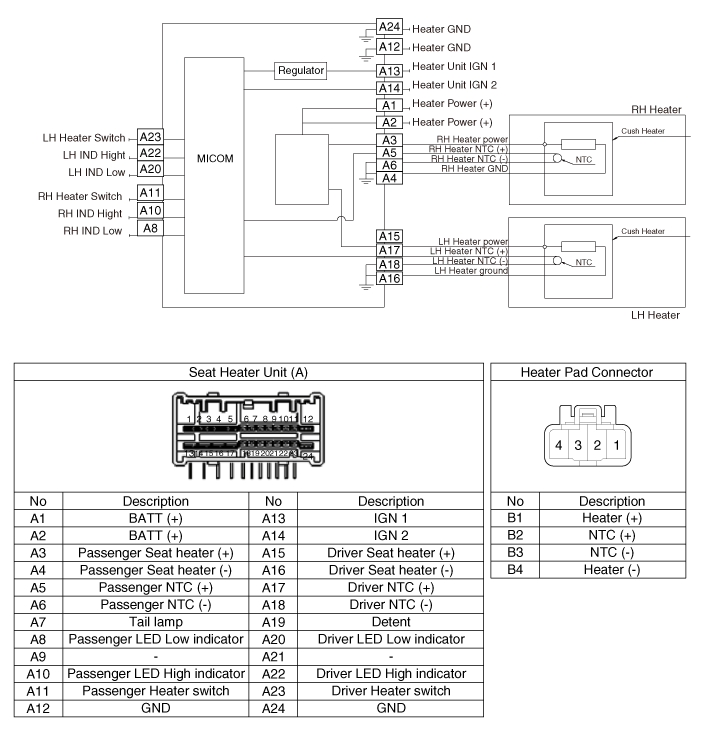

[Rear Seat Heater (Bench Type)]

Seat Heater Components and Components Location
Component Location [Front Seat Heater (Non-Air ventilation)] [Front Seat Heater (Air ventilation)] [Rear Seat Heater] ...

Seat Heater Repair procedures
Inspection Front Seat Heater 1. Check for continuity and measure the resistance between terminals No 3 and No 6. Standard value Driver / Assists (cushion + back) : 1.65?±10%/23°C 2. O ...
