Hyundai Elantra: BCM (Body Control Module) / Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / BCM (Body Control Module) / Schematic Diagrams

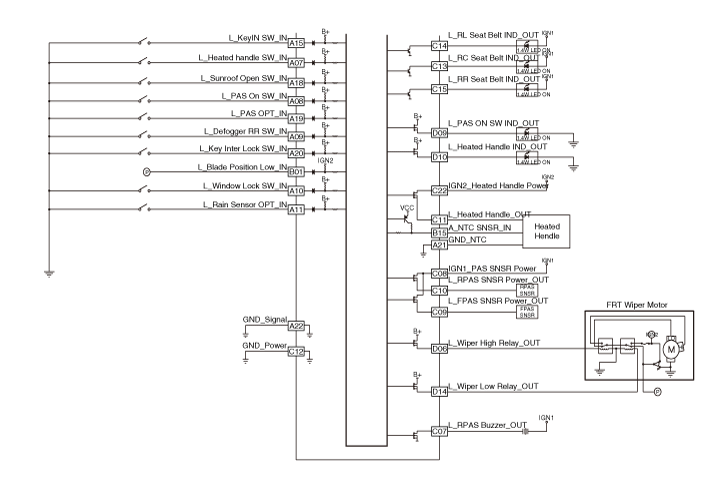

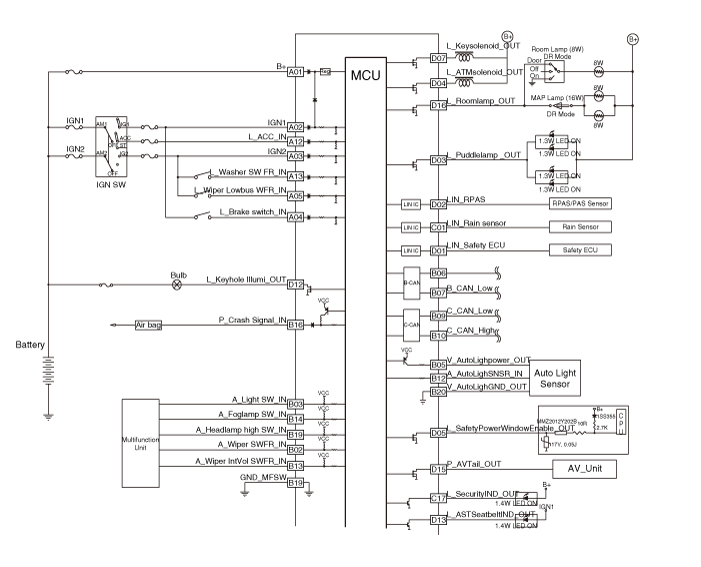

Circuit Diagram

Components and Components Location

Components NoConnector AConnector BConnector CConnector D1Batt (+)IGNRain sensor (LIN)Airbag unit (LIN)2IGN 1Front wiper switch (High)-RPAS (LIN)3IGN 2Light switch-Puddle lamp4B ...

Description and Operation

Description Body Control Module (BCM) function NoItemDescription1Washer Linked Wiper - If the washer switch is pressed ON for 0.06~0.2 second with the vehicle mode in IGN2, the wiper rela ...
