Hyundai Elantra: Fuel Delivery System / Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Control/Fuel System / Fuel Delivery System / Components and Components Location

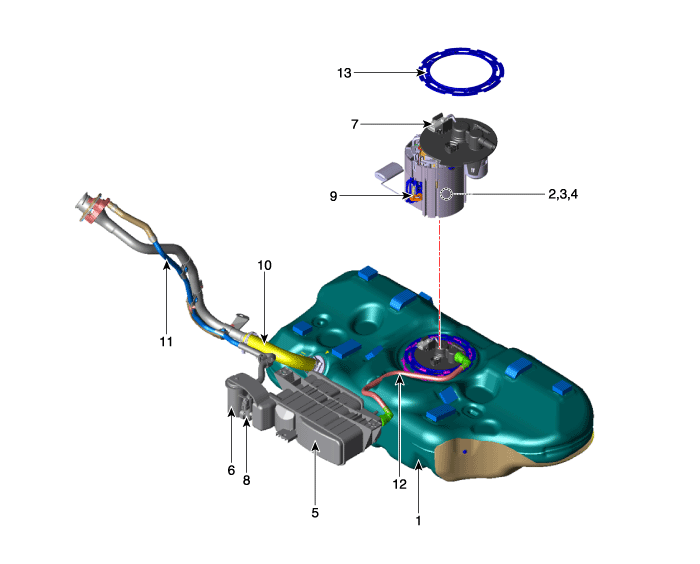

Components Location

1. Fuel tank
2. Fuel pump
3. Fuel filter
4. Fuel pressure regulator
5. Canister
6. Fuel tank air filter
7. Fuel tank pressure sensor (FTPS)

8. Canister close valve (CCV)
9. Fuel level sensor (FLS)
10. Fuel filler hose
11. Ventilation tube
12. Vapor tube
13. Fuel pump plate cover

Repair procedures

Fuel Pressure Test 1. Release the residual pressure in fuel line. (Refer to Fuel Delivery System - “Release Residual Pressure in Fuel Line”) • When removing the f ...
