Hyundai Elantra: Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

Component Location

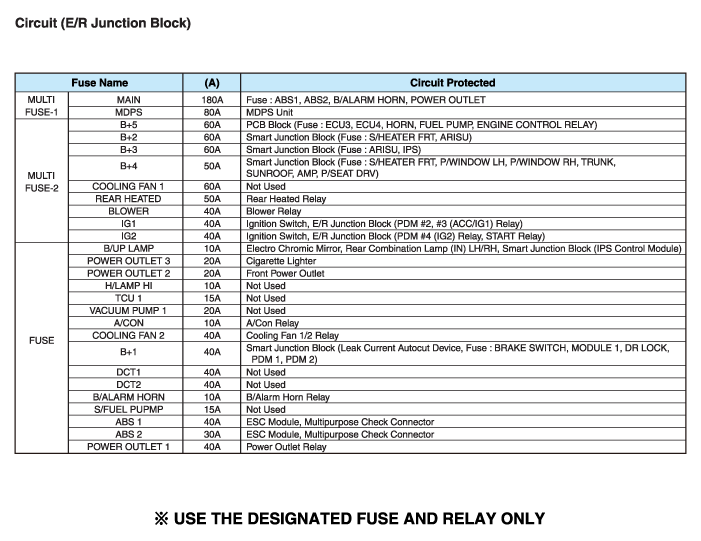

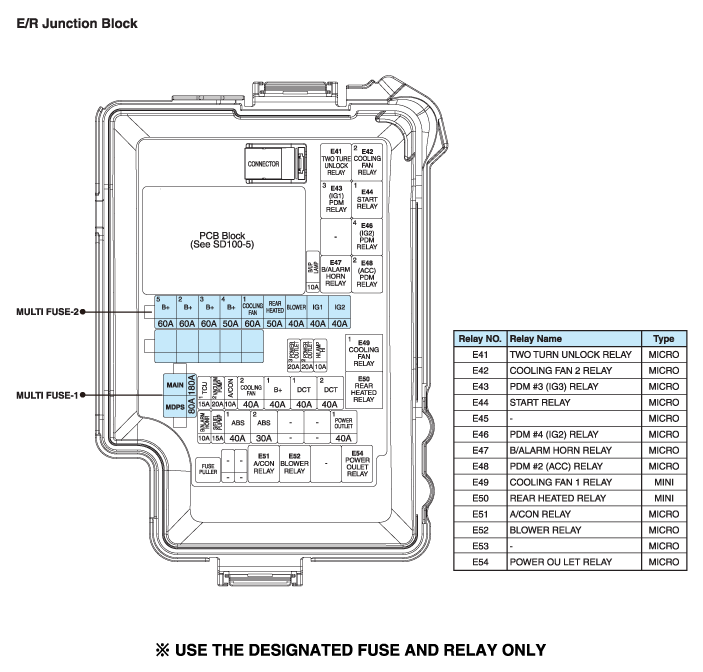

Engine Room Junction Block

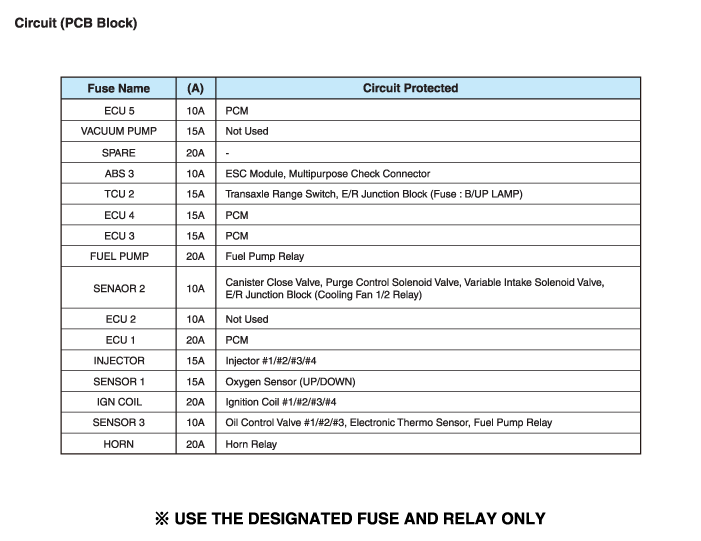

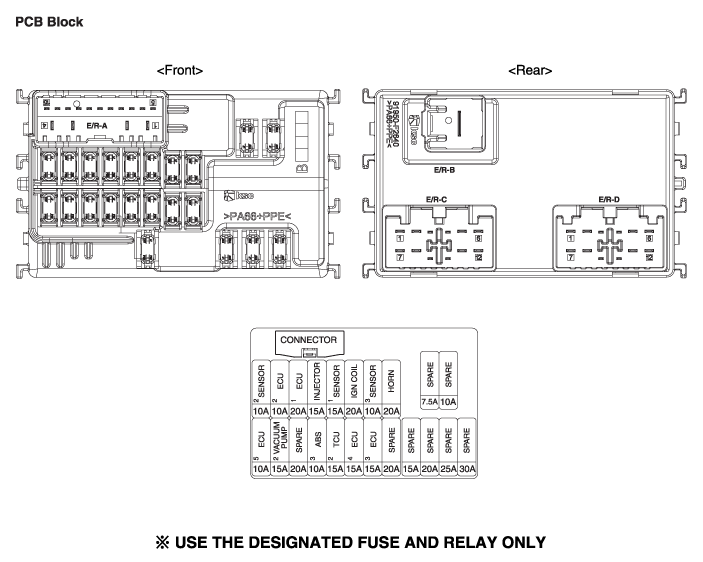

Metal Core Block (PCB)

Components and Components Location
Component Location [Engine Room] 1. Engine room junction block [Interior Relay] 1. Smart junction block (SJB) ...

Relay Box (Engine Compartment) Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay block. Power Relay (Type A) Check for continuity between the terminals. ...
