Hyundai Elantra: Driving Your Vehicle / Rear Cross-traffic Collision Warning (RCCW) System
System Description
Rear Cross-Traffic Collision Warning (RCCW) system

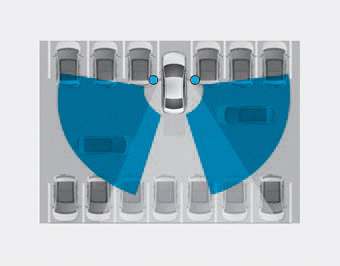

The Rear Cross-Traffic Collision Warning (RCCW) system uses radar sensors to monitor the approaching cross traffic from the left and right side of the vehicle when your vehicle is in reverse.
The blind spot detection range varies relative to the approaching vehicle speed.
WARNING
- Always be aware of road and traffic conditions while driving and be alert for unexpected situations even though the Rear Cross-Traffic Collision Warning system is operating.
- The Rear Cross-Traffic Collision Warning system is supplemental systems to assist you. Do not entirely rely on the systems. Always pay attention, while driving, for your safety.
- The Rear Cross-Traffic Collision Warning system is not substitutes for proper and safe driving. Always drive safely and use caution when backing up the vehicle.
Limitations of the System
The driver must be cautious in the below situations because the system may not
detect other vehicles or objects in certain circumstances:
The vehicle is driven in inclement weather such as heavy ...
System Setting and Operation
System setting
• Setting Blind-Spot Safety function
The driver can activate the systems by placing the ignition switch to the ON
position and by selecting 'User Settings → Driver Assista ...
