Hyundai Elantra: Rear Cross-traffic Collision Warning (RCCW) System / Detecting sensor

Hyundai Elantra. Detecting sensor

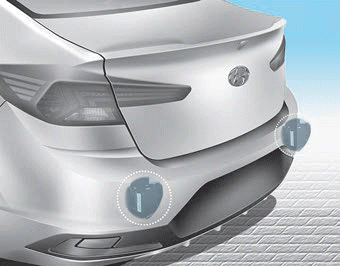

The rear radars are located inside the rear bumper for detecting the side and rear areas. Always keep the rear bumper clean for proper operation of the system.

NOTICE

Warning message

Hyundai Elantra. Detecting sensor

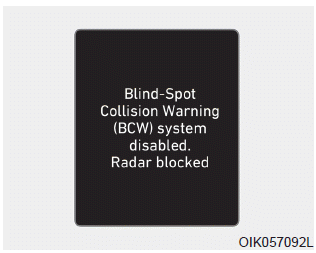

Blind-Spot Collision Warning (BCW) system disabled. Radar blocked

This warning message may appear when:

- One or both of the sensors on the rear bumper is blocked by dirt or snow or a foreign object.
- Driving in rural areas where the sensor does not detect another vehicle for an extended period of time.
- When there is inclement weather such as heavy snow or rain.

If any of these conditions occur, the light on the BCW switch and the system will turn off automatically.

When the BCW canceled warning message is displayed in the cluster, check to make sure that the rear bumper is free from any dirt or snow in the areas where the sensor is located. Remove any dirt, snow, or foreign material that could interfere with the radar sensors.

After any dirt or debris is removed, the system should operate normally after about 10 minutes of driving the vehicle.

If the system still does not operate normally have your vehicle inspected by an authorized HYUNDAI dealer.

Hyundai Elantra. Detecting sensor

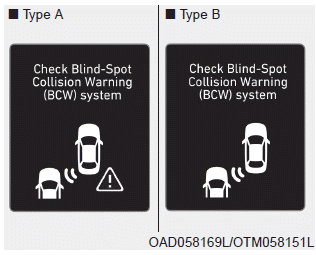

Check Blind-Spot Collision Warning (BCW) system

If there is a problem with the BCW system, a warning message will appear and the light on the switch will turn off. The system will turn off automatically. RCCW will not operate also if the BCW system turns off due to malfunction. Have your vehicle inspected by an authorized HYUNDAI dealer.

Warning and system control
Rear Cross-Traffic Collision Warning (RCCW) system If the vehicle detected by the sensors approaches from the rear left/right side of your vehicle, the warning chime will sound, the warning light ...

Limitations of the system
The driver must be cautious in the below situations because the system may not detect other vehicles or objects in certain circumstances: The vehicle is driven in inclement weather such as heavy ...
