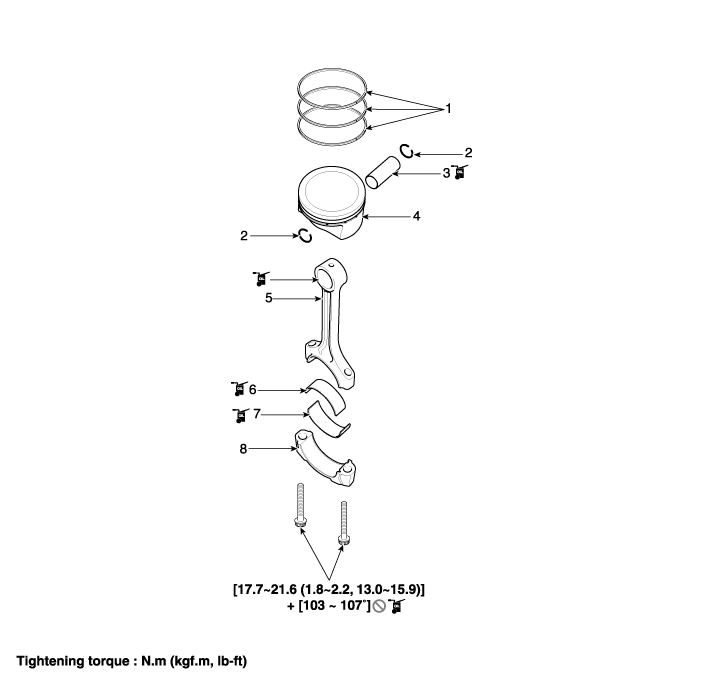

Components

1. Piston ring
2. Snap ring
3. Piston pin
4. Piston
5. Connecting rod
6. Connecting rod upper bearing
7. Connecting rod lower bearing
8. Connecting rod bearing cap

Rear Oil Seal Repair procedures
Removal 1. Remove the automatic transaxle. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the drive plate. (Refer to Cylinder Block – “Drive Plate”) 3. Re ...

Piston and Connecting Rod Repair procedures
Disassembly Engine removal is required for this procedure.     • Use fender covers to avoid damaging painted surfaces. • To avoid damaging the cylinder head, wait u ...
