Hyundai Elantra. Adjusting the side view mirrors

Adjusting the side mirrors:

1. Press either the L (driver's side) or R (passenger's side) button (1) to select the side view mirror you would like to adjust.

2. Use the mirror adjustment control switch to position the selected mirror up, down, left or right.

3. After adjustment, put the button into neutral (center) position to prevent inadvertent adjustment.

NOTICE

The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is pressed. Do not press the switch longer than necessary, the motor may be damaged.
Do not attempt to adjust the side view mirrors by hand or the motor may be damaged.

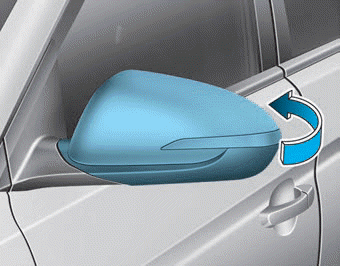

Folding the side view mirrors

Hyundai Elantra. Adjusting the side view mirrors

To fold the side view mirrors, grasp the housing of the mirror and then fold it toward the rear of the vehicle.
