Hyundai Elantra: Maintenance / Parking Brake
Checking the Parking Brake

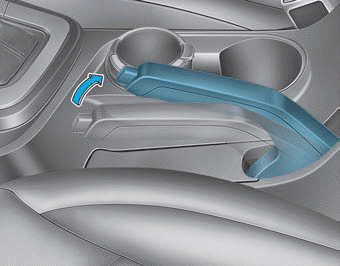

Check the stroke of the parking brake by counting the number of "clicks" heard while fully applying it from the released position. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, have the parking brake adjusted by an authorized HYUNDAI dealer.
Stroke : 6 clicks at a force of 44 lbs (20 kg, 196 N)
Washer Fluid
Checking the Washer Fluid Level
Check the fluid level in the washer fluid reservoir and add fluid if necessary.
Plain water may be used if washer fluid is not available. However, use washer solve ...
