Hyundai Elantra: Lubrication System / Oil Pump Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Lubrication System / Oil Pump Components and Components Location

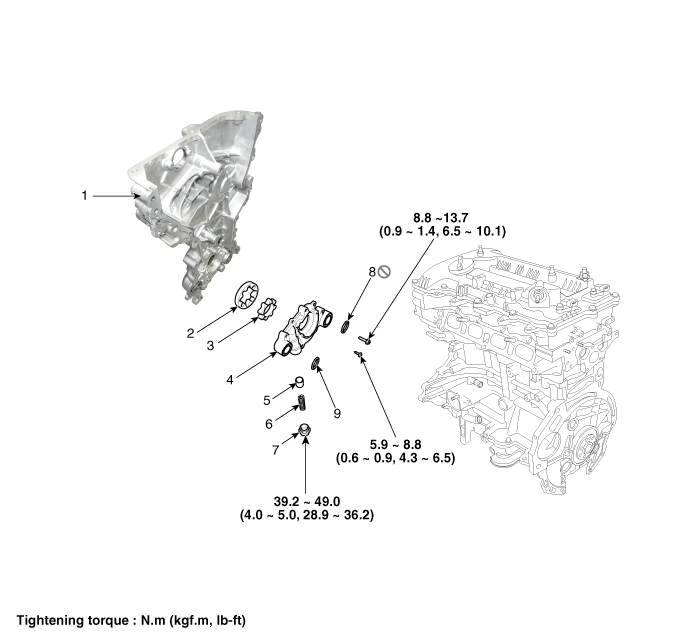

Components

1. Timing chain cover
2. Outer roter
3. Inner roter
4. Oil pump cover
5. Relief plunger

6. Relief spring
7. Relief plug
8. O-ring (suction side)
9. O-ring (discharge side)

Oil Pan Repair procedures

Removal 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 2. Drain engine oil. (Refer to Lubrication System - "Engine Oil") 3. R ...

Oil Pump Repair procedures

Removal and Installation 1. Remove the timing chain cover. (Refer to Timing System – “Timing Chain Cover”) 2. Remove the oil pump cover (A). Tightening torque Screws : 5.9 ~ 8.8 N. ...
