Hyundai Elantra: Scheduled Maintenance Services / Normal Maintenance Schedule

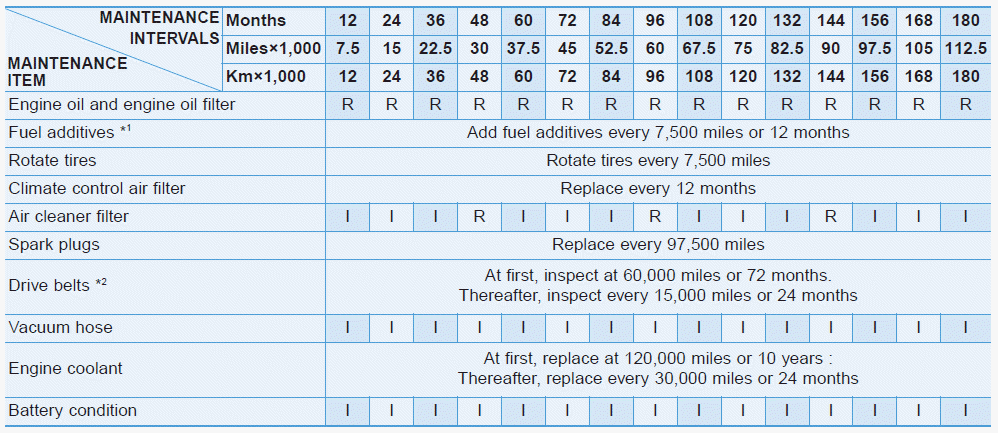

Hyundai Elantra. Normal Maintenance Schedule

I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1 : If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.
*2 : The drive belt should be replaced when cracks occur or tension is reduced excessively.

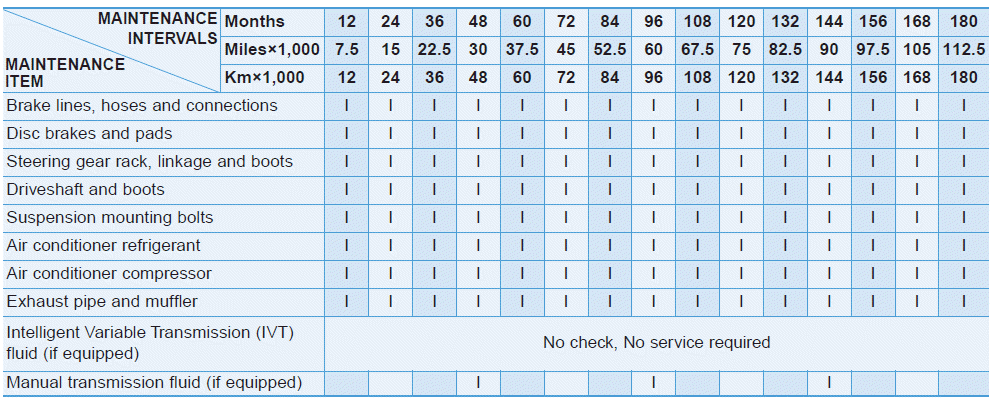

Hyundai Elantra. Normal Maintenance Schedule

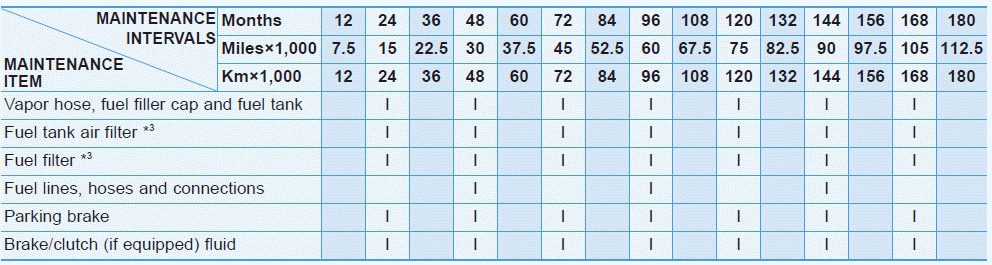

Hyundai Elantra. Normal Maintenance Schedule

*3 : Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality. If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem, etc. replace the fuel filter immediately regardless of maintenance schedule and consult an authorized HYUNDAI dealer for details.

Scheduled Maintenance Services
Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the following conditions apply. If any of the following conditions apply, you must follow the Maintenance Under ...

Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals. I : Inspect and if ...
