Hyundai Elantra: Audio / Multimedia Jack Schematic Diagrams
| Circuit Diagram |
Audio Remote Control Repair procedures
Inspection
1.
Check for resistance between terminals in each switch position (LH).
[LH : Audio + Hands free]
SwitchConnector terminalResistance(±5%)SEEK Up2-5430 ?SEEK Down1.11 k?MODE2.11 k?MUT ...

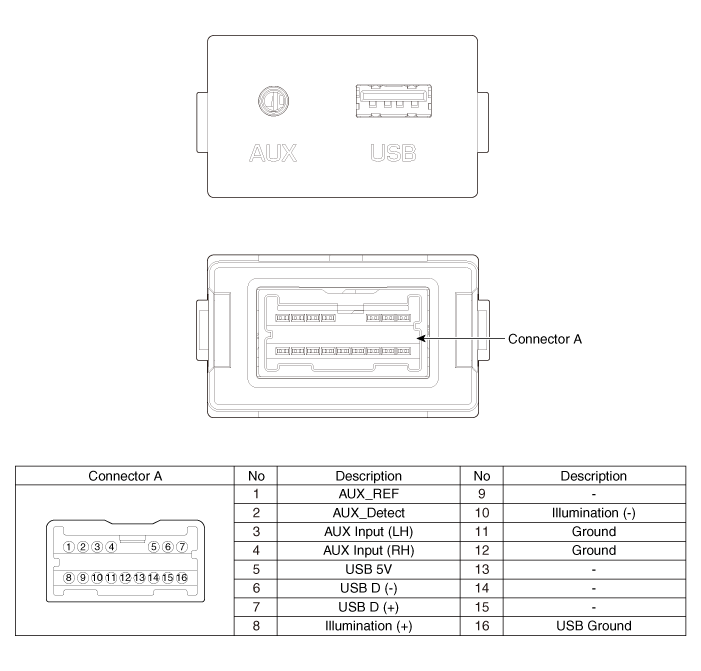

Multimedia Jack Description and Operation
Description
The multimedia jack on the console upper cover is for
customers who like to listen to external portable music players like the
MP3 etc., through the vehicle's sound system when it i ...
