Outside Rear View Mirror Components and Components Location

Component Location

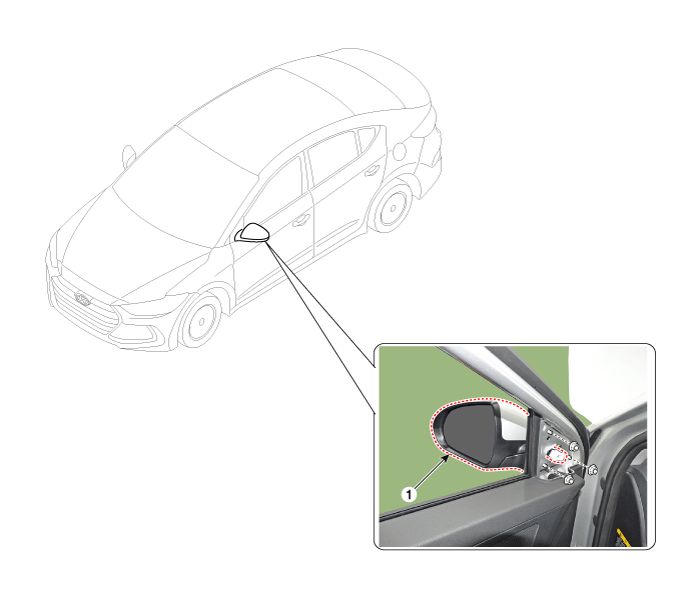

1. Outside rear view mirror

Outside Rear View Mirror Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Take care not to scratch the body surface.

1.	Using a screwdriver or remover, remove the front door quadrant inner cover (A).

2.	Disconnect the outside rear view mirror connector (A).

After loosening the mounting nuts, remove the outside rear view mirror (A).

Tightening torque :

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

To intall, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Replace any damaged clips (or pin-type retainers).

Inside Rear View Mirror Components and Components Location

Component Location

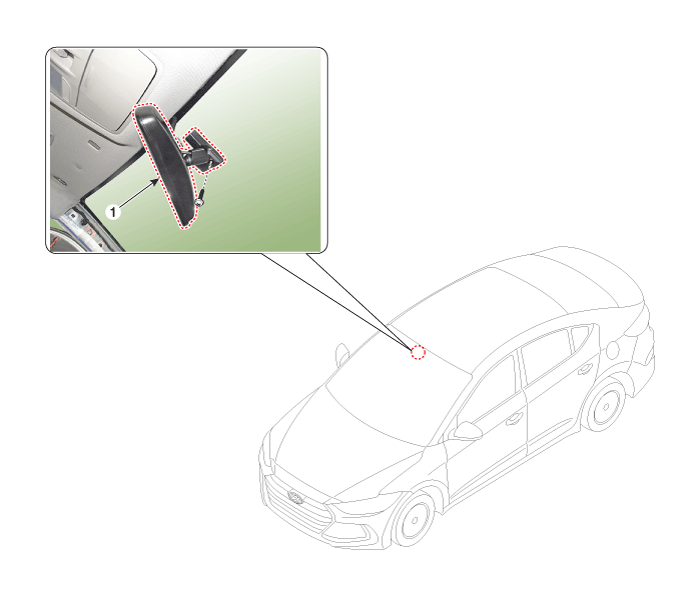

1. Inside rear view mirror

Inside Rear View Mirror Repair procedures

Replacement

Put on gloves to prevent hand injuries.

1.	Remove the inside rear view mirror cover (A).

2.	Disconnect the ECM mirror connector (A).

3.	Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).

To intall, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Be careful not to damage the windshield glass.
