Hyundai Elantra: IMS(Integrated Memory System) / Memory power seat unit Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / IMS(Integrated Memory System) / Memory power seat unit Schematic Diagrams

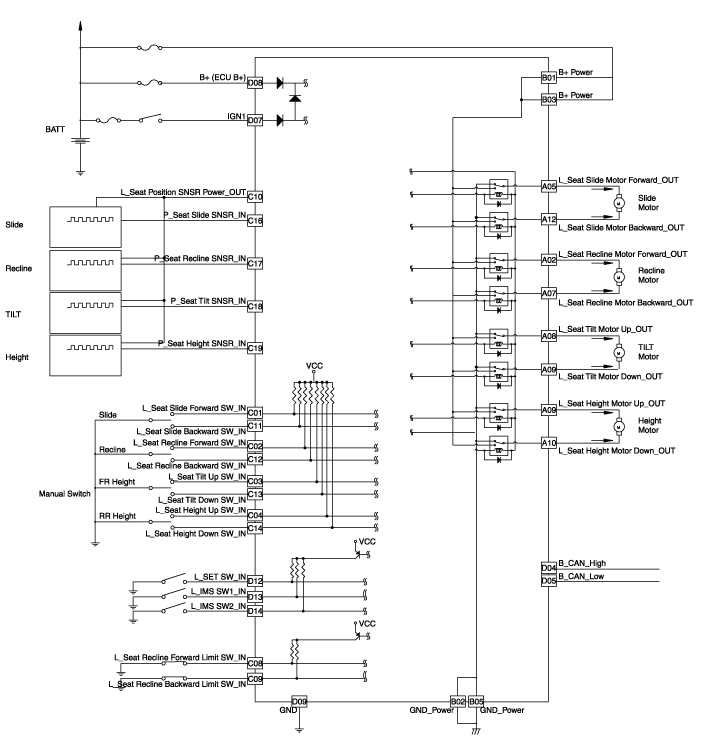

Circuit Diagram

Memory power seat unit Components and Components Location

Components NoConnecter AConnecter BConnecter CConnecter D1-Batt (+)Slide switch signal (Forward)-2Reclining motor (Forward)GNDReclining switch signal (Forward)-3Height motor (Up)Batt (+)Front til ...

Memory power seat unit Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the driver seat assembly. (Refer to Body - "Front Seat Assembly") 3. Loosening the IMS unit mounting screws. 4. Disc ...
