Hyundai Elantra: Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Control/Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) Schematic Diagrams

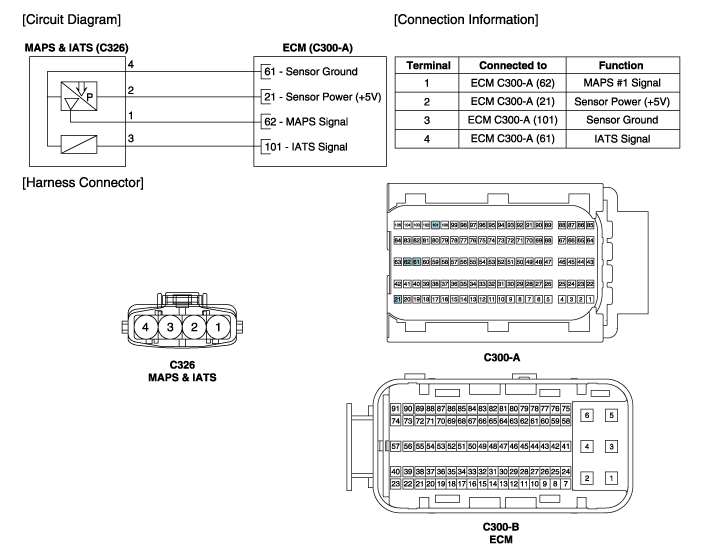

Circuit Diagram

Manifold Absolute Pressure Sensor (MAPS) Specifications
Specification Pressure [kPa (kgf/cm?, psi)]Output Voltage (V)20.0 (0.20, 2.9)0.7946.7 (0.47, 6.77)1.84101.3 (1.03, 14.7)4.0 ...

Manifold Absolute Pressure Sensor (MAPS) Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. ConditionOutput Voltage (V)IG ON3.9 ~ 4.1Idle0.8 ~ 1.6 Remo ...
