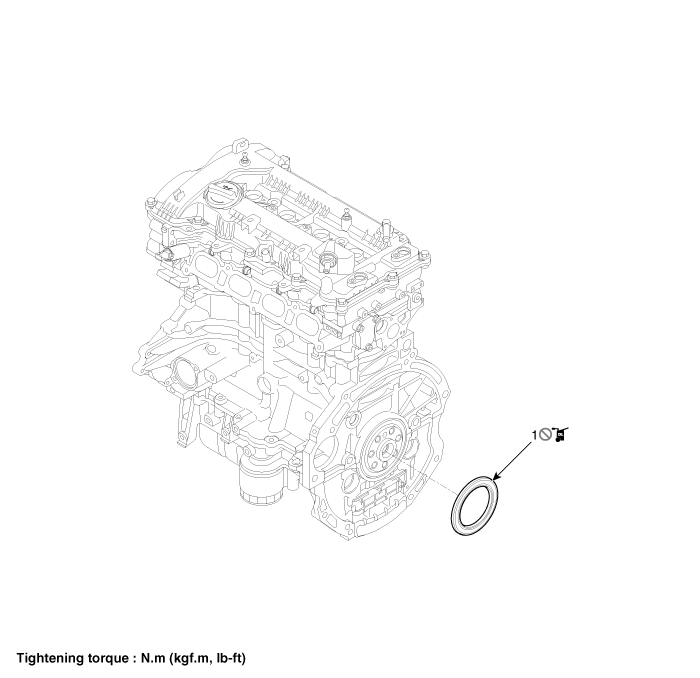

Components

1. Rear oil seal

Drive plate Repair procedures
Removal and Installation 1. Remove the automatic transaxle. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the drive plate (A) and the adapter plate (B). Tighteni ...

Rear Oil Seal Repair procedures
Removal 1. Remove the automatic transaxle. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the drive plate. (Refer to Cylinder Block – “Drive Plate”) 3. Re ...
