Hyundai Elantra: Light Bulbs / Interior Light Bulb Replacement

Hyundai Elantra. Interior Light Bulb Replacement

■ Map lamp

Hyundai Elantra. Interior Light Bulb Replacement

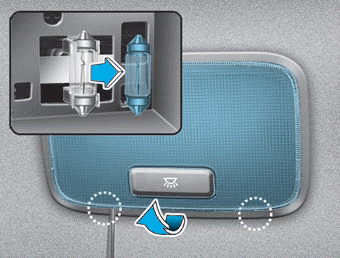

■ Room lamp

Hyundai Elantra. Interior Light Bulb Replacement

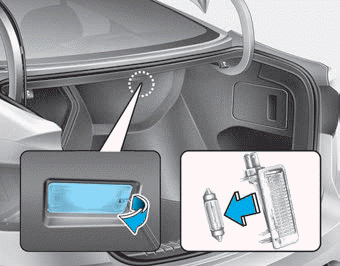

■ Luggage room lamp

Hyundai Elantra. Interior Light Bulb Replacement

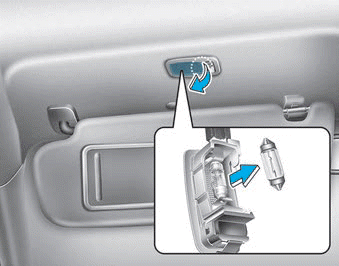

■ Vanity mirror lamp (if equipped)

1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp housing.

2. Remove the bulb by pulling it straight out.

WARNING

Prior to working on the Interior Lights, ensure that the "OFF" button is depressed to avoid burning your fingers or receiving an electric shock.

3. Install a new bulb in the socket.

4. Align the lens tabs with the interior lamp housing notches and snap the lens into place.

NOTICE

Use care not to dirty or damage lens, lens tab, and plastic housings.
