Hyundai Elantra: Blower / Intake Actuator Components and Components Location
| Components Location |

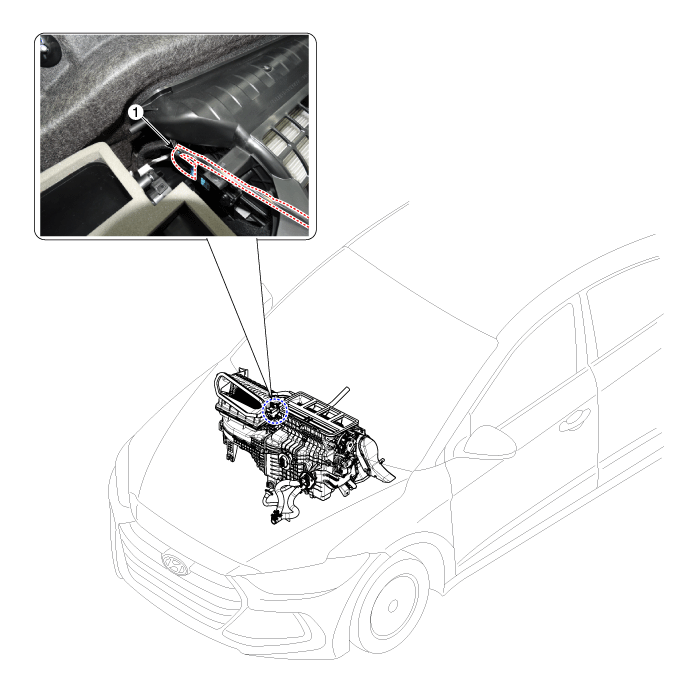

| 1. Intake actuator |
Climate Control Air Filter Repair procedures
Replacement
1.
Remove the stopper (B) from the glove box (A).
2.
Disconnect the air damper (A) from the glove box (B).
3.
Remove the filter cover (A) by pressing the knob.
4.
Replace t ...
Intake Actuator Description and Operation
Description
The intake actuator is located at the blower unit. It
regulates the intake door by a signal from the control unit. Pressing
the intake selection switch will shift between recirculat ...
