Hyundai Elantra: Your Vehicle at a Glance / Instrument Panel Overview

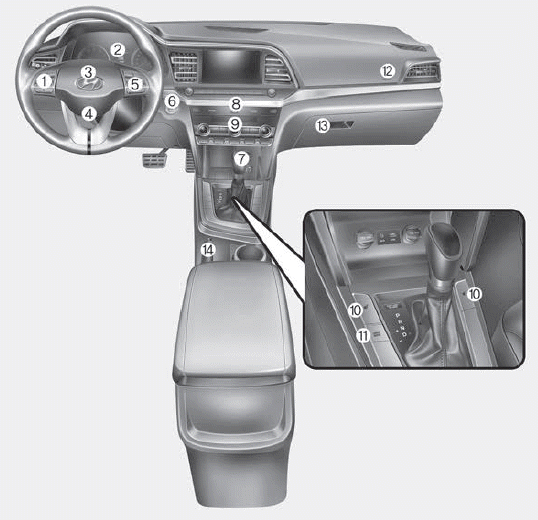

Hyundai Elantra. Instrument Panel Overview

1. Steering wheel audio controls* / Bluetooth® wireless technology hands-free controls
2. Instrument cluster
3. Horn
4. Driver's front air bag
5. Cruise control switch
6. Key ignition switch* / Engine start/stop button
7. Shift lever
8. Hazard warning flasher button
9. Climate control system
10. Seat warmer
11. Drive mode system
12. Passenger's front air bag
13. Glove box
14. Parking brake

Interior Overview
1. Door lock/unlock button 2. Side view mirror control switch 3. Central door lock switch 4. Power window switches 5. Power window lock switch 6. Driver position memory system 7. Instrument pa ...

Engine Compartment
■ 1.6 T-GDI ■ 2.0 MPI 1. Engine oil filler cap 2. Engine oil dipstick 3. Brake/Clutch fluid reservoir 4. Positive battery terminal 5. Negative battery terminal 6. Fuse box 7. Air clean ...
