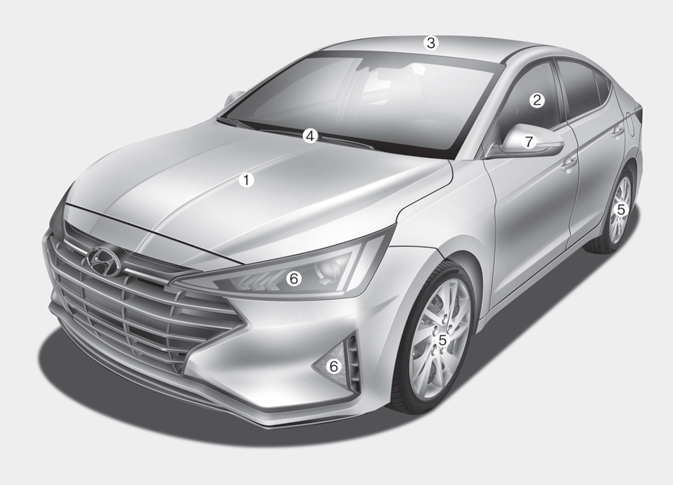

â– Front view
1. Hood
2. Windows
3. Sunroof
4. Wiper blade
5. Tires and wheels
6. Front lamps
7. Side repeater lamp

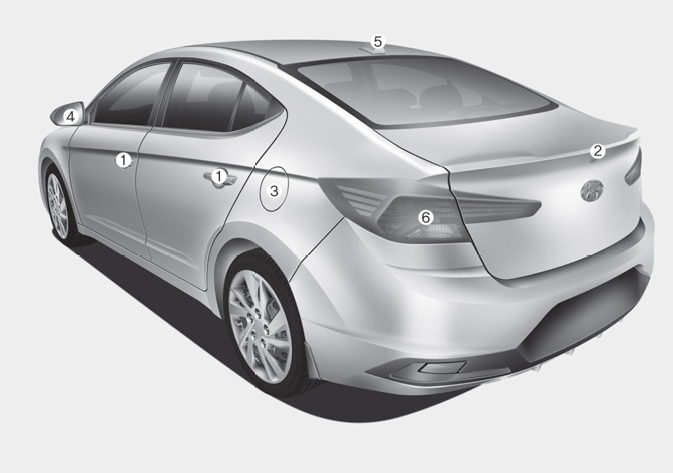

â– Rear view
1. Door lock
2. Trunk
3. Fuel filler door
4. Side view mirror
5. Antenna
6. Rear lamps

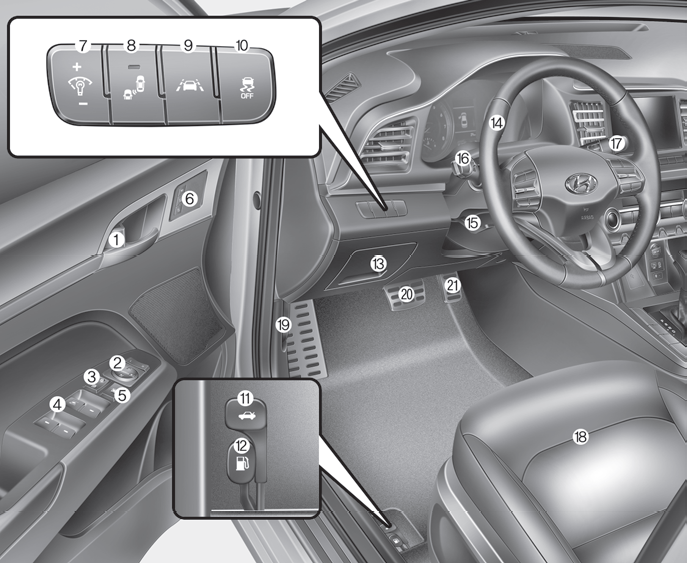

1. Door lock/unlock button
2. Side view mirror control switch
3. Central door lock switch
4. Power window switches
5. Power window lock switch
6. Driver position memory system
7. Instrument panel illumination control switch
8. Blind-spot Collision Warning (BCW) system
9. Lane Keeping Assist (LKA) system
10. ESC (Electronic Stability Control) OFF button
11. Trunk lid release lever
12. Fuel filler door release lever
13. Fuse panel
14. Steering wheel
15. Steering wheel tilt/telescopic lever
16. Light control/Turn signals
17. Wiper/Washer
18. Seat
19. Hood release lever
20. Brake pedal
21. Accelerator pedal

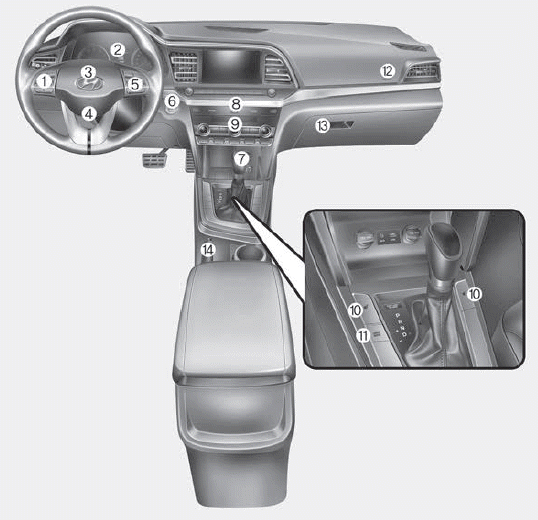

1. Steering wheel audio controls* / Bluetooth® wireless technology hands-free
controls
2. Instrument cluster
3. Horn
4. Driver's front air bag
5. Cruise control switch
6. Key ignition switch* / Engine start/stop button
7. Shift lever
8. Hazard warning flasher button
9. Climate control system
10. Seat warmer
11. Drive mode system
12. Passenger's front air bag
13. Glove box
14. Parking brake

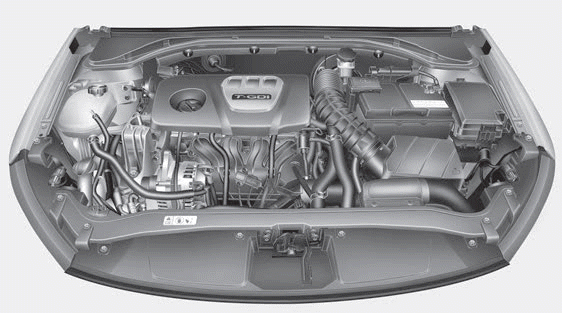

â– 1.6 T-GDI

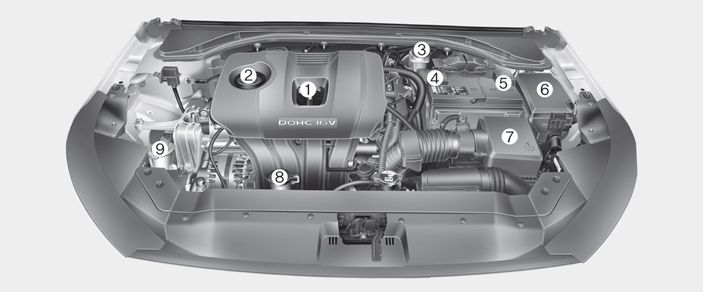

â– 2.0 MPI
1. Engine oil filler cap
2. Engine oil dipstick
3. Brake/Clutch fluid reservoir
4. Positive battery terminal
5. Negative battery terminal
6. Fuse box
7. Air cleaner
8. Engine coolant reservoir
9. Windshield washer fluid reservoir
