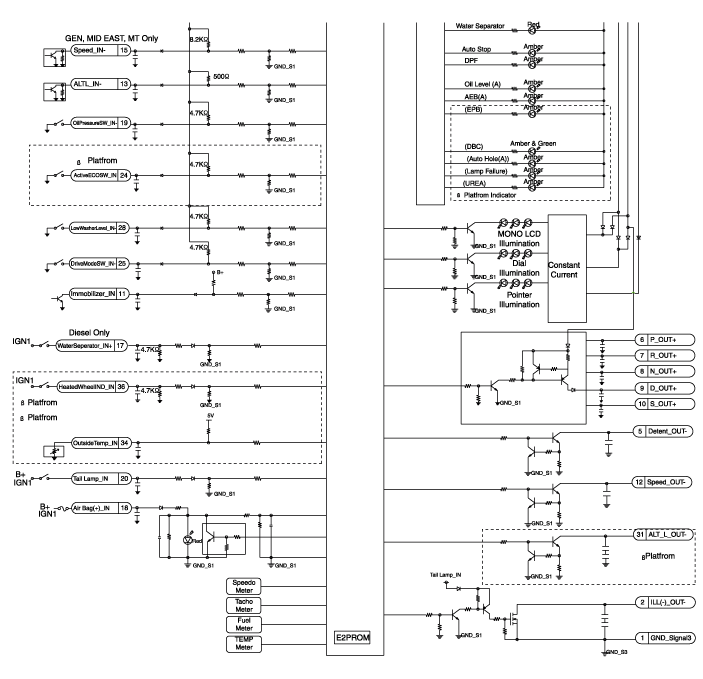

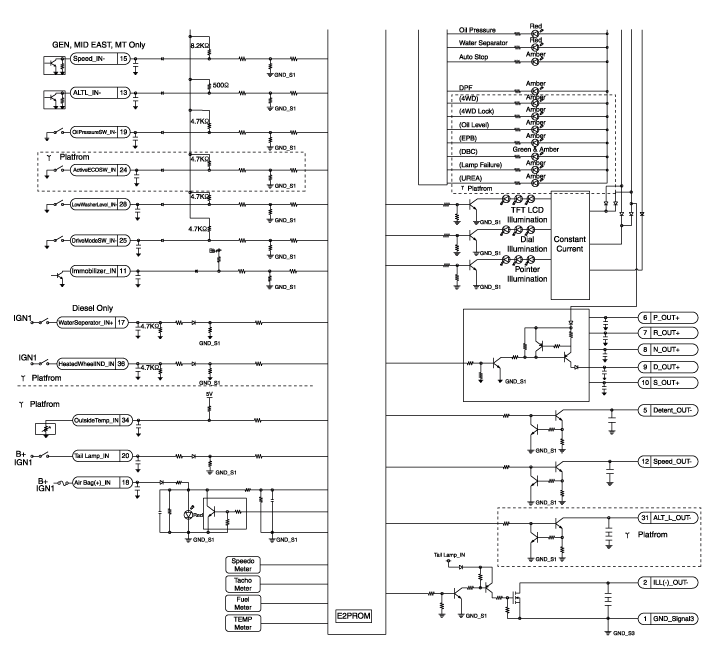

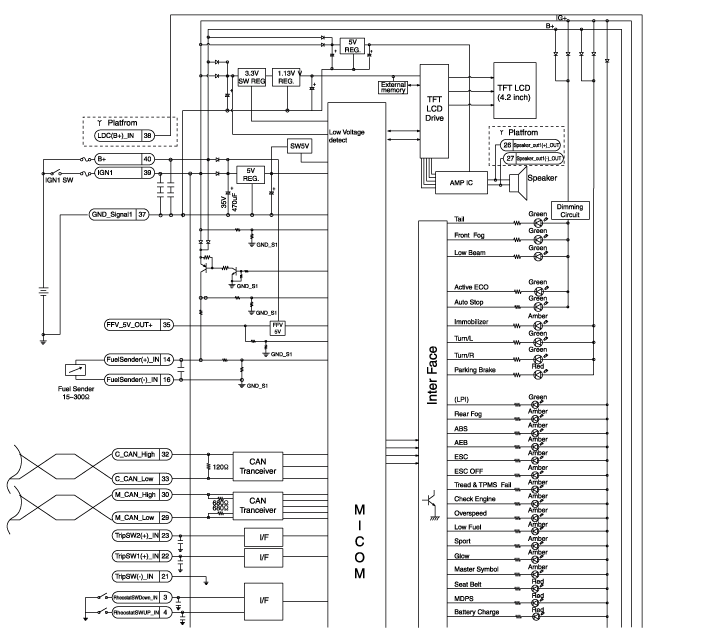

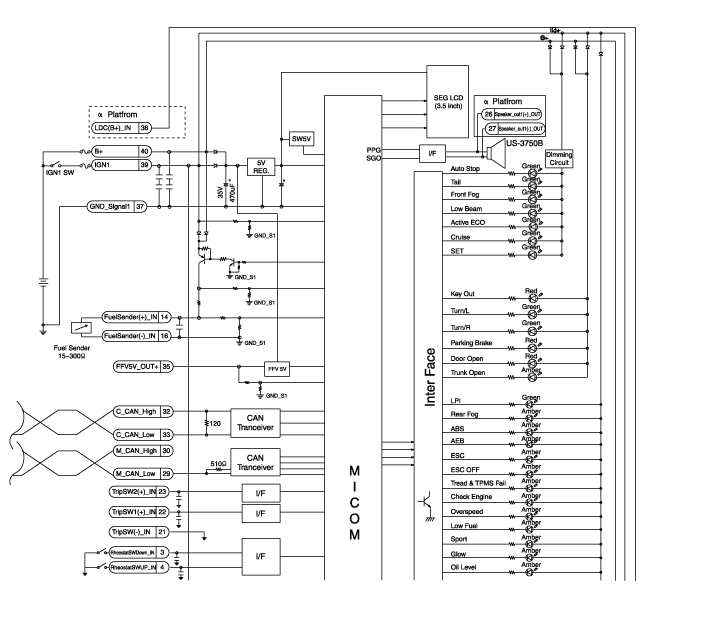

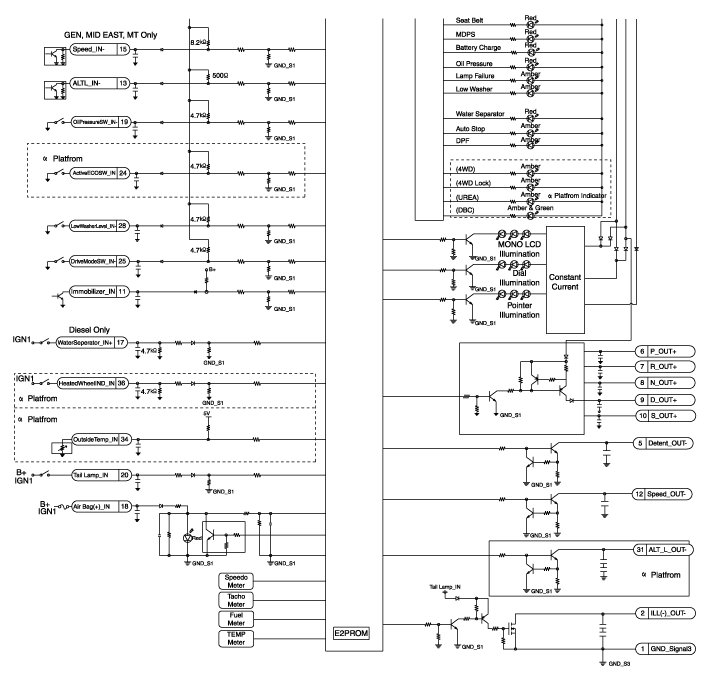

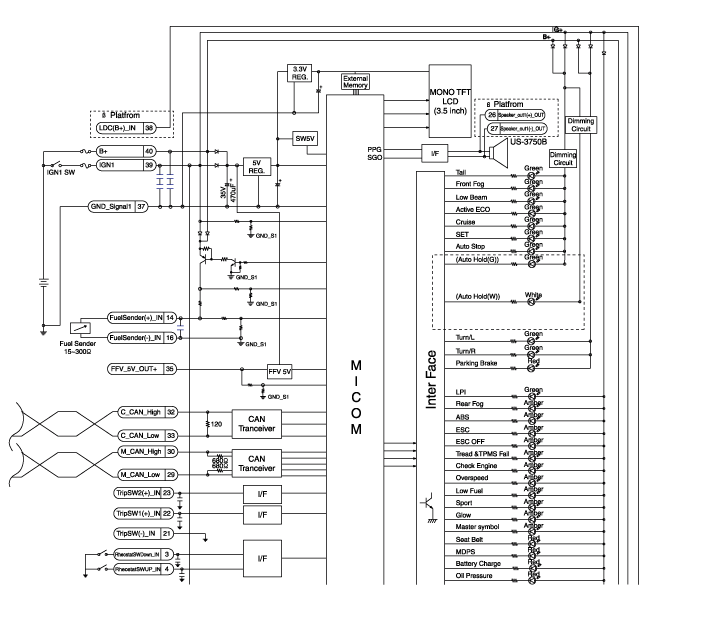

Circuit Diagram

[General Standard]

[MONO Type]

[General Supervision]

Instrument Cluster Components and Components Location

Components [General Standard Type (3.5" OLED)] [MONO Type (3.5")] [General Super Vision Type (4.2" LCD)] Connector Pin Information NoDescriptionNoDescription1GND21Trip switch (-)2Illumination ( ...

Instrument Cluster Description and Operation

Description Communication Network Diagram AbbreviationExpalnationACUAirbag Control UnitADMAssist Door ModuleB_CANBody Controller Area NetworkBCMBody Control ModuleBSDBlind Spot DetectionC_CANCha ...
