Hyundai Elantra: Automatic Transaxle Control System / Inhibitor Switch Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Inhibitor Switch Schematic Diagrams

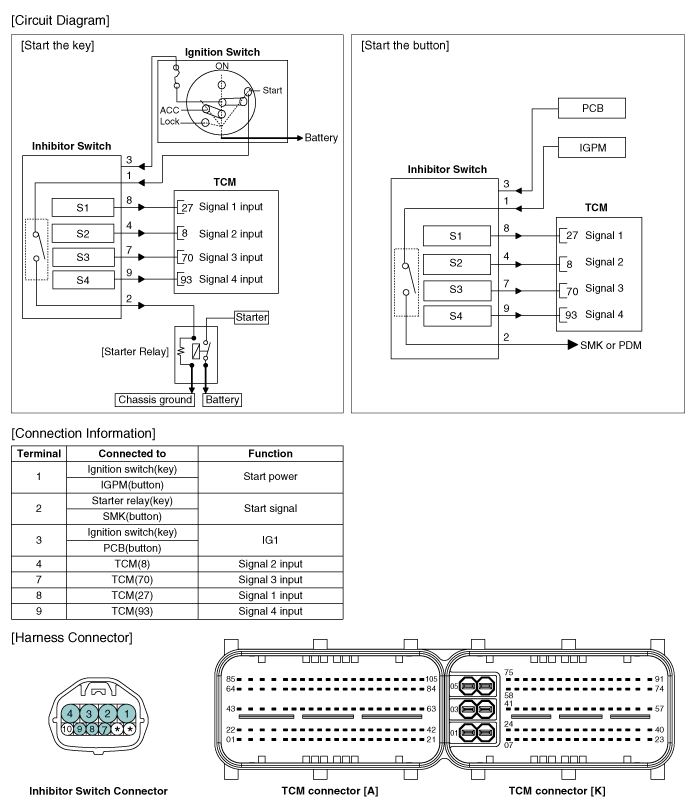

Circuit Diagram

Inhibitor Switch Specifications

Specifications ? Type: Combination of output signals from 4 terminals ? Specifications Items Specifications Power supply (V)12Output type Combination of output signals ...

Inhibitor Switch Troubleshooting

Fault Diagnosis Fault Diagnosis for Symptom Major Symptom Expected Cause Items to Check and Measures Shift lever inoperableFaulty shift cable tensionAdjust shift cable t ...
