Hyundai Elantra: Fuses / Fuse/Relay Panel Description

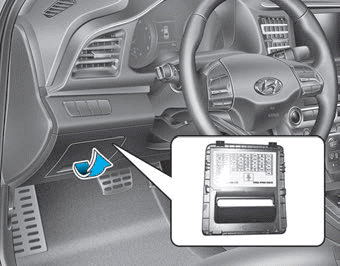

Instrument panel fuse panel

Hyundai Elantra. Fuse/Relay Panel Description

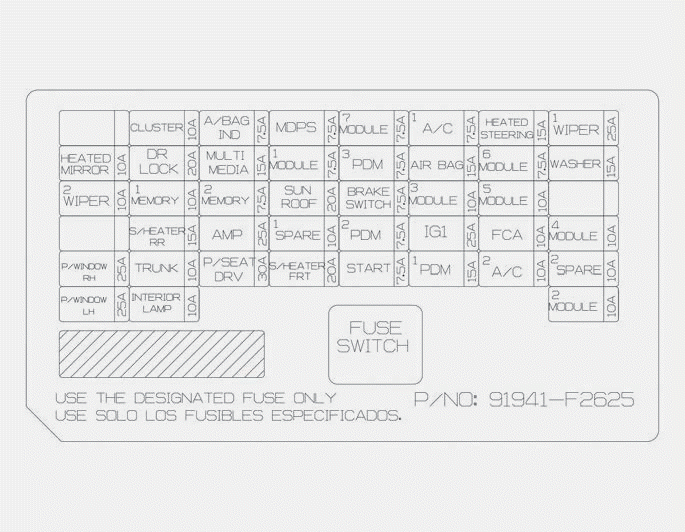

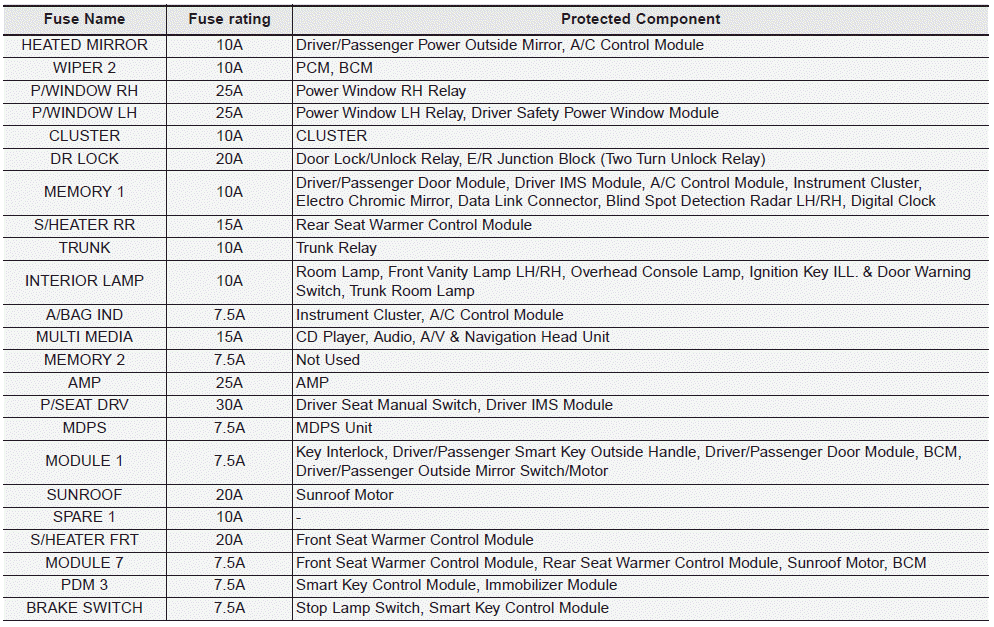

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay name and capacity.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

Hyundai Elantra. Fuse/Relay Panel Description

Hyundai Elantra. Fuse/Relay Panel Description

Hyundai Elantra. Fuse/Relay Panel Description

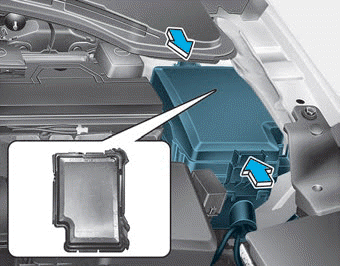

Engine compartment fuse panel

Hyundai Elantra. Fuse/Relay Panel Description

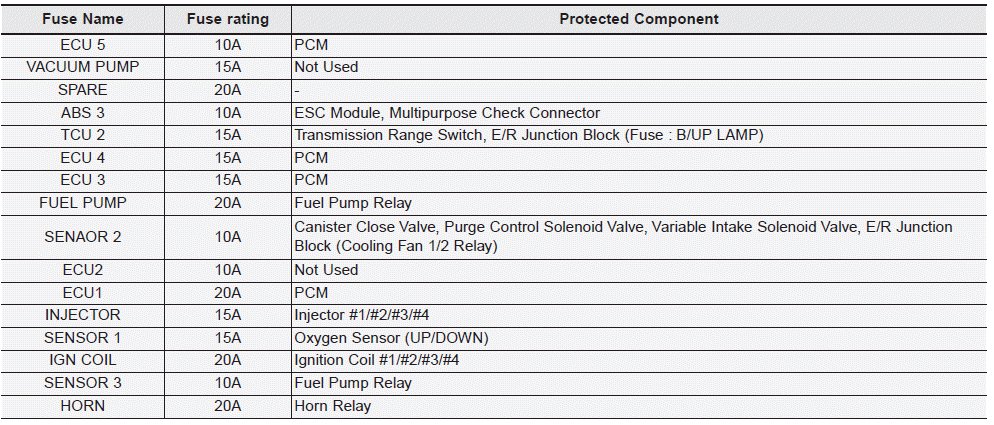

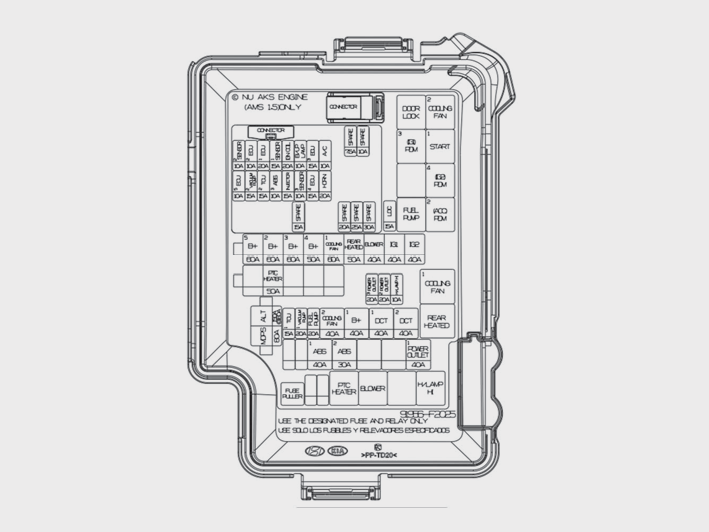

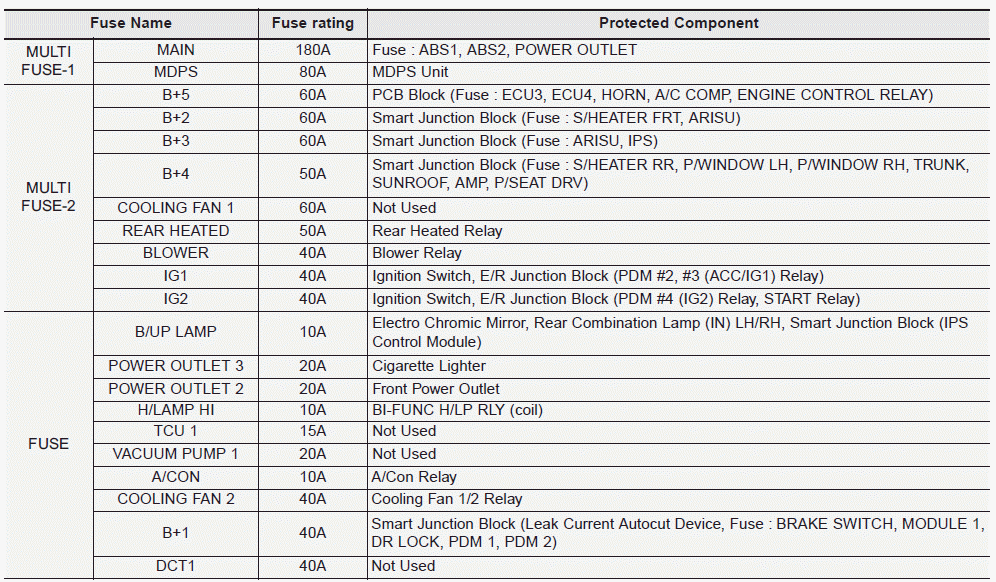

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay name and capacity.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Hyundai Elantra. Fuse/Relay Panel Description

Hyundai Elantra. Fuse/Relay Panel Description

Hyundai Elantra. Fuse/Relay Panel Description

Hyundai Elantra. Fuse/Relay Panel Description
