Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle Components and Components Location

Component Location

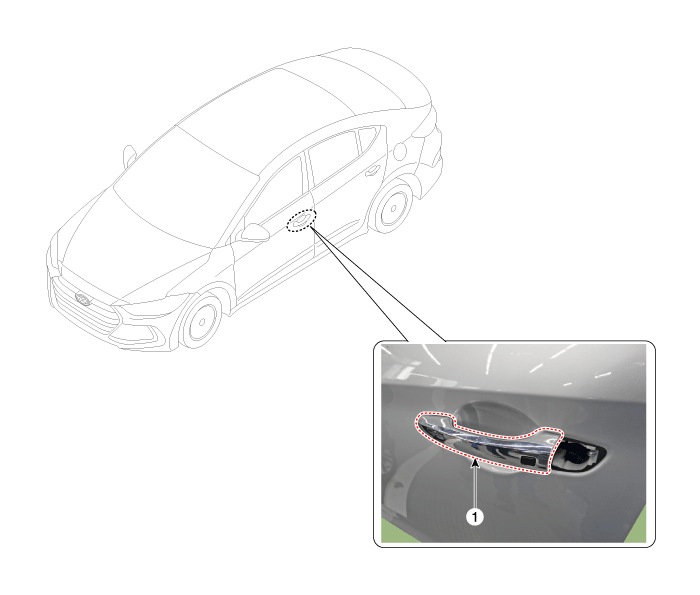

1. Front door outside handle


Front Door Module Repair procedures
Replacement 1. Remove the front door window glass. (Refer to Front Door - "Front Door Window Glass") 2. Remove the front door outside handle. (Refer to Front Door - "Front Door Outside Modul ...

Front Door Outside Handle Repair procedures
Replacement 1. Remove the plug hole (B). 2. After loosening the mounting bolt, remove the front door lock assembly (A). Tightening torque : 7.8 ~ 10.8 N.m (0.8 ~ 1.1 kgf.m, 5.8 ~ 8.0 lb-ft ...
