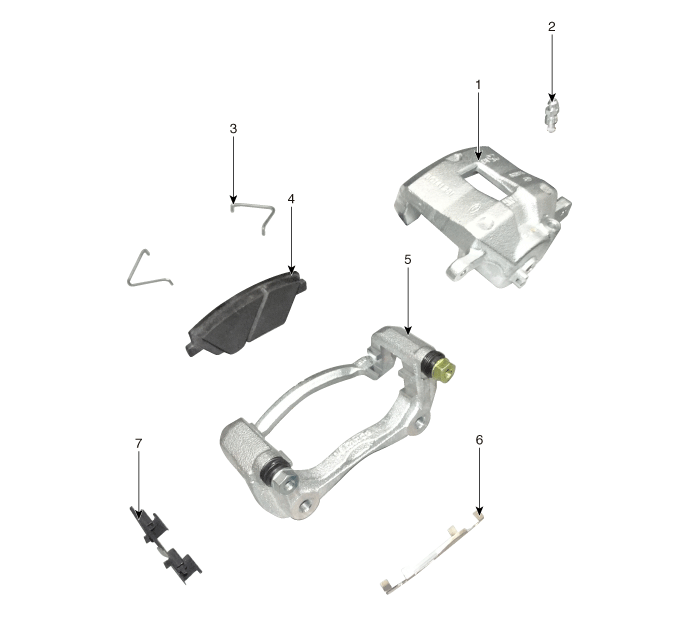

Components

1. Caliper body
2. Bleed screw
3. Pad return spring
4. Brake pad
5. Caliper carrier
6. Pad inner shim
7. Pad retainer

Brake Pedal Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 3. Disconnect the stop lamp switch c ...

Front Disc Brake Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from front hub . Tightening torque: 107.9 ~ 1 ...
