Hyundai Elantra: IMS(Integrated Memory System) / Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / IMS(Integrated Memory System) / Components and Components Location

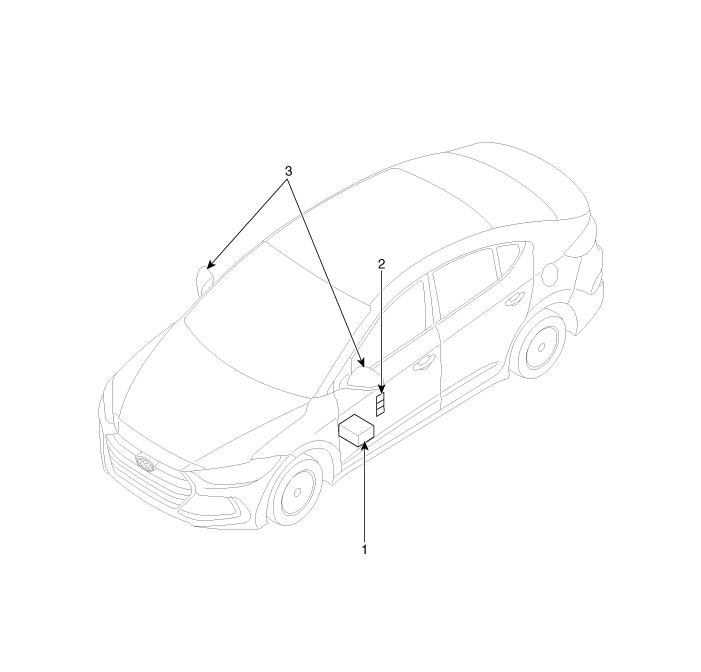

Components

1. Memory power seat unit (PSM)
2. IMS control switch

3. Outside Mirror

Specifications

Specifications [Memory Power Seat Unit ] ItemSpecificationsRated voltageDC 12VOperating VoltageDC 9V ~ 16VOperating Temperature Range-30°C ~ 75°C Dark currentMax. 1? [Memory Power Seat Switch ...
