Hyundai Elantra: ESC(Electronic Stability Control) System / ESC Control Unit Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Brake System / ESC(Electronic Stability Control) System / ESC Control Unit Components and Components Location

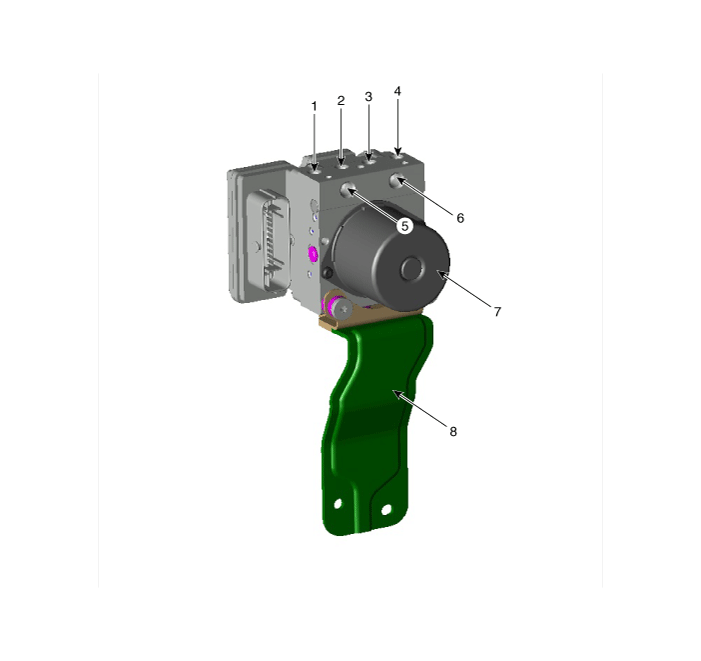

Components

1. Front - right tube
2. Rear - left tube
3. Rear - right tube
4. Front - left tube

5. MC SEC
6. MC PRI
7. ESC control module(HECU)
8. Bracket
