Hyundai Elantra: Specifications, Consumer Information and Reporting Safety Defects / Engine Number, Refrigerant Label

Hyundai Elantra AD (2016-2020) Owners Manual / Specifications, Consumer Information and Reporting Safety Defects / Engine Number, Refrigerant Label

Engine Number

Hyundai Elantra. Engine Number, Refrigerant Label

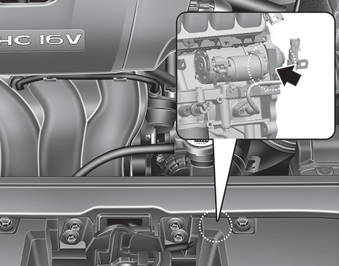

■ 1.6 T-GDI

Hyundai Elantra. Engine Number, Refrigerant Label

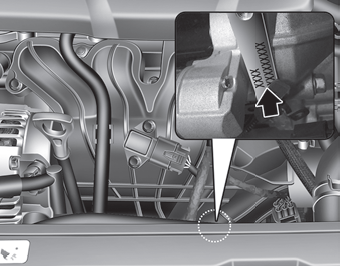

■ 2.0 MPI

Refrigerant Label

Hyundai Elantra. Engine Number, Refrigerant Label

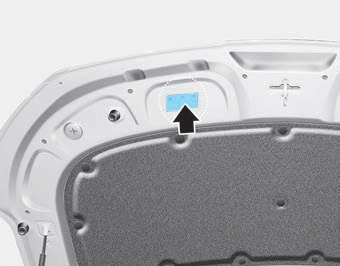

The refrigerant label provides information such as refrigerant type and amount.

The label is located on the underside of the hood.
