Hyundai Elantra: Engine Control System / Variable Charge Motion Actuator (VCMA) Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Control/Fuel System / Engine Control System / Variable Charge Motion Actuator (VCMA) Components and Components Location

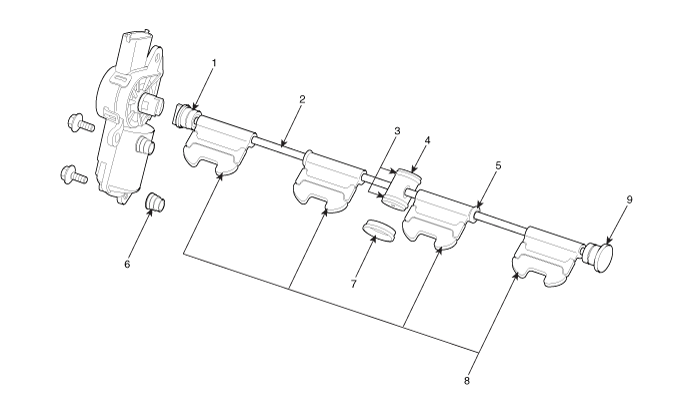

Components

1. Coupling
2. Shaft
3. Stabilizer O-ring
4. Stabilizer
5. O-ring
6. Insert nut
7. Stabilizer Cover
8. Valve
9. Hole cover

Variable Charge Motion Actuator (VCMA) Description and Operation
Description The Variable Charge Motion Actuator (VCMA) is installed on the inlet of the intake manifold. It consists of a DC motor which actuates the VCM valve and a position sensor which detects ...

Variable Charge Motion Actuator (VCMA) Specifications
Specification Motor ItemSpecificationCoil Resistance (?)3.4 ~ 4.4 [20°C(68°F)] Position sensor ItemSpecificationCoil Resistance (k?)3.44 ~ 5.16 [20°C(68°F)] ...
