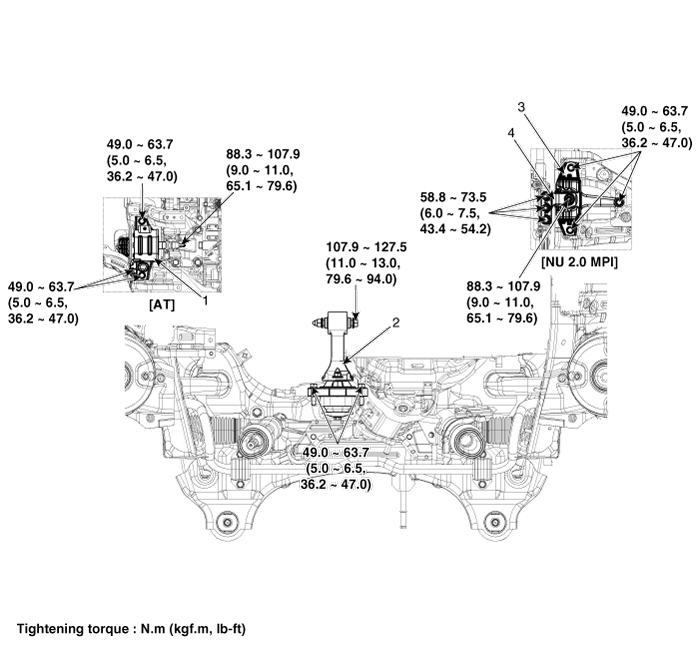

Components

1. Transaxle mounting bracket
2. Roll rod bracket

3. Engine mounting bracket
4. Engine mounting support bracket

Engine Room Under Cover Repair procedures

Removal and Installation Engine Room Under Cover 1. Remove the engine room under cover (A). Tightening torque: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft) 2. Install in the reverse ...

Engine Mounting Repair procedures

Removal and Installation Engine Mounting Bracket 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 2. Install the jack under the edg ...
