Hyundai Elantra: Interior Trim / Door Scuff Trim Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim Components and Components Location

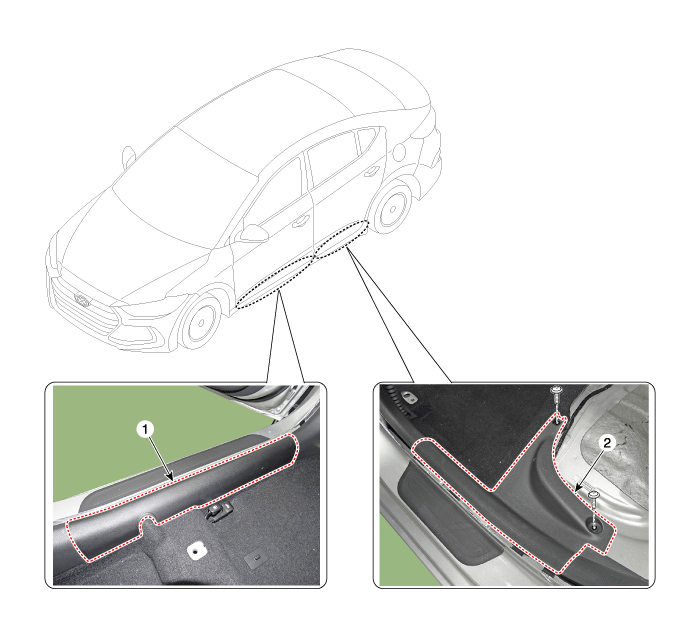

Component Location

1. Front door scuff trim
2. Rear door scuff trim

Components and Components Location
Components 1. Cowl side trim 2. Front door scuff trim 3. Rear door scuff trim 4. Front pillar trim 5. Front door step trim 6. Rear door step trim 7. Center pillar upper trim 8. Center pillar lowe ...

Door Scuff Trim Repair procedures
Replacement [Front door scuff trim]     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, w ...
