Hyundai Elantra: AVN System / AUX jack Description and Operation

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / AVN System / AUX jack Description and Operation

Description

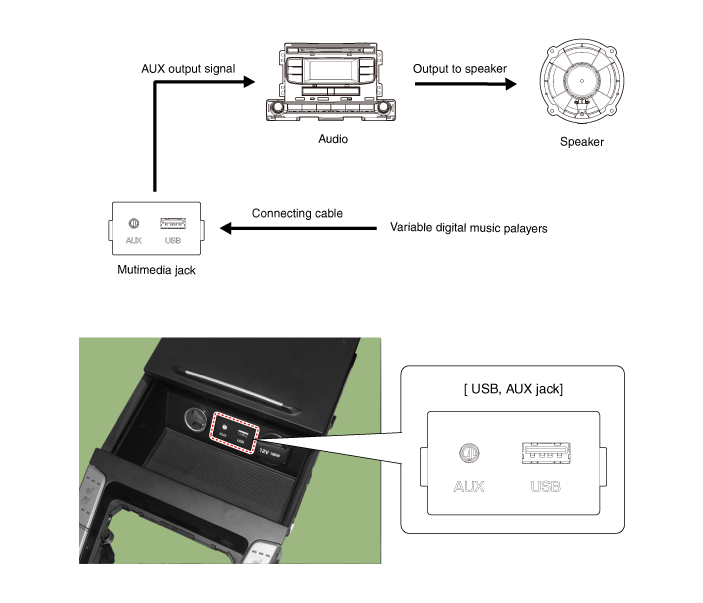

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.

In case of distortions from media connected to the AUX source, the audio unit may not be defective but the output level of the used media does not match the specification of the AUX input.

AUX jack Schematic Diagrams

Circuit Diagram ...

AUX jack Repair procedures

Removal 1. Disconnect the battery (-) terminals. 2. Remove the floor console assembly. (Refer to Body - "Floor Console Assembly") 3. Remove the multimedia jack (A) from the console under ...
