Hyundai Elantra: Convenient Features of Your Vehicle / Defroster

NOTICE

To prevent damage to the conductors bonded to the inside surface of the rear window, never use sharp instruments or window cleaners containing abrasives to clean the window.

If you want to defrost and defog the front windshield, refer to the "Windshield Defrosting and Defogging" section in this chapter.

Rear Window Defroster

Hyundai Elantra. Defroster

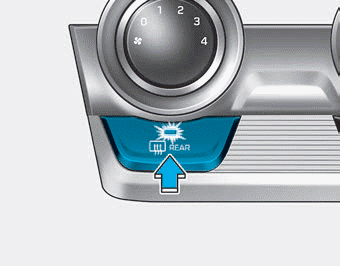

■ Manual climate control system

Hyundai Elantra. Defroster

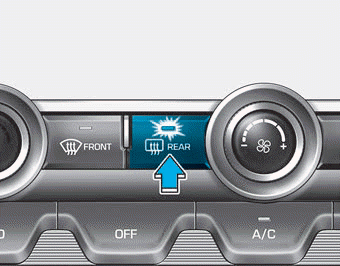

■ Automatic climate control system

The defroster heats the window to remove frost, fog and thin ice from the interior and exterior of the rear window, while engine is running.

Information

Side view mirror defroster

If your vehicle is equipped with the side view mirror defrosters, they will operate at the same time you turn on the rear window defroster.
