Hyundai Elantra: Cylinder Head Assembly / Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Cylinder Head Assembly / Components and Components Location

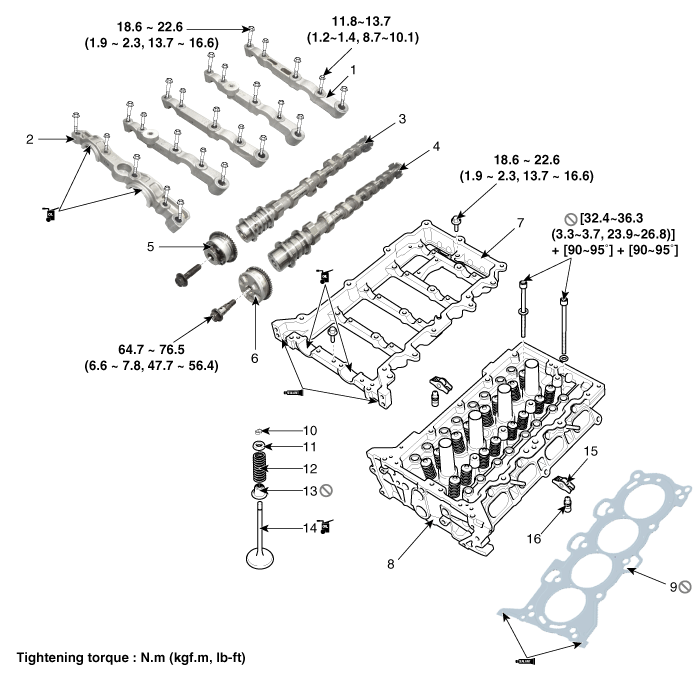

Components

1. Camshaft bearing cap
2. Camshaft front bearing cap
3. Exhaust camshaft
4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly

7. Cam carrier
8. Cylinder head
9. Cylinder head gasket
10. Retainer lock
11. Retainer
12. Valve spring

13. Valve stem seal
14. Valve
15. Swing arm
16. Hydraulic lash adjuster (HLA)
