Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / LKAS(Lane Keeping Assist System) / Components and Components Location

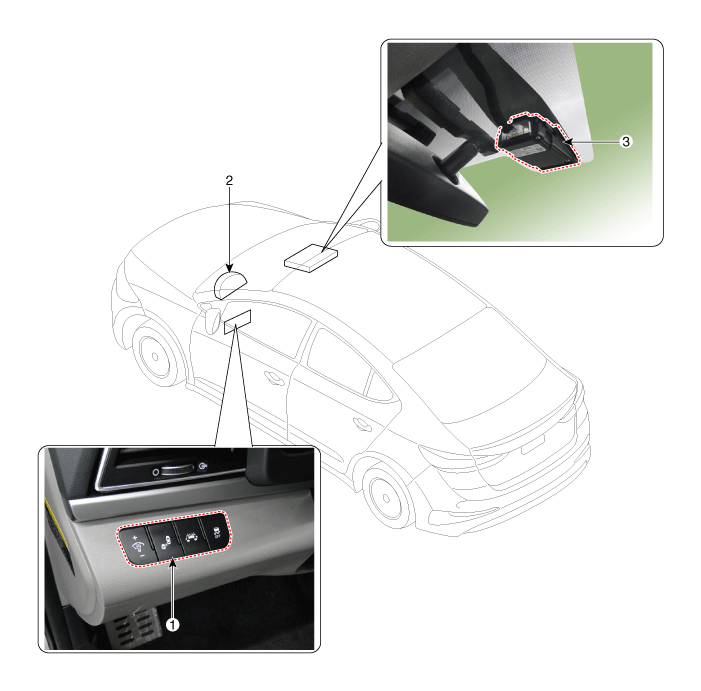

Components

1. LKAS ON/OFF Switch
2. Instrument Cluster

3. LKAS Unit

LKAS(Lane Keeping Assist System)

...

Description and Operation

Description LKAS (Lane Keeping Assist System) : The system is designed to help recognize the lane ahead and to give off a lane departure warning when the vehicle starts moving out of the lane b ...
