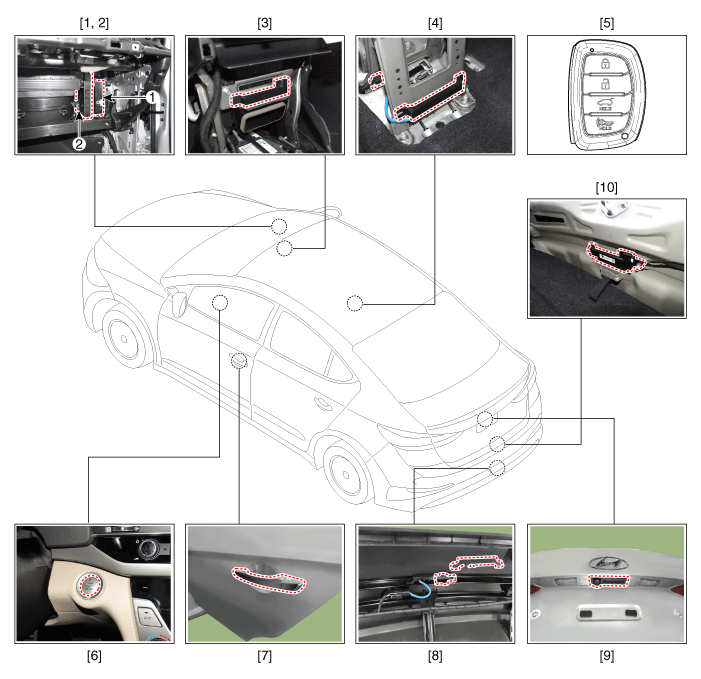

Component Location

1. Smart key unit
2. Body control module (BCM)
3. Interior antenna 1
4. Interior antenna 2
5. FOB Key
6. Start Stop Button (SSB)
7.Door handle & Door antenna
8. Bumper antenna
9. Trunk antenna
10. Trunk lid switch

Button Engine Start System
...

Schematic Diagrams
Circuit Diagram ...
