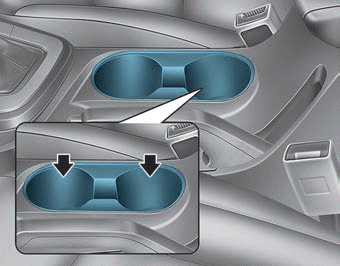

â– Front

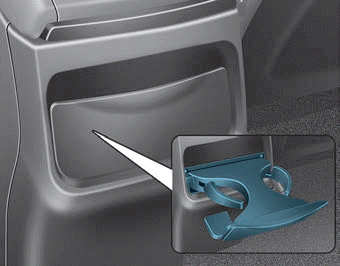

■Rear • Type A

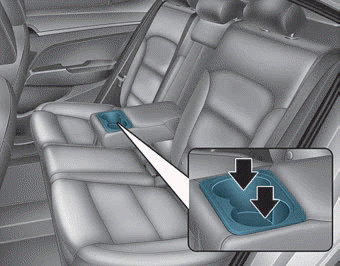

■Rear • Type B
Cups or small beverages cups may be placed in the cup holders.
Front cup holder liner can be removed for cleaning.
Rear
WARNING
WARNING
Keep cans or bottles out of direct sun light and do not put them in a hot vehicle. It may explode.
NOTICE
