Hyundai Elantra: Electro Chromic Inside Rear View Mirror / Components and Components Location

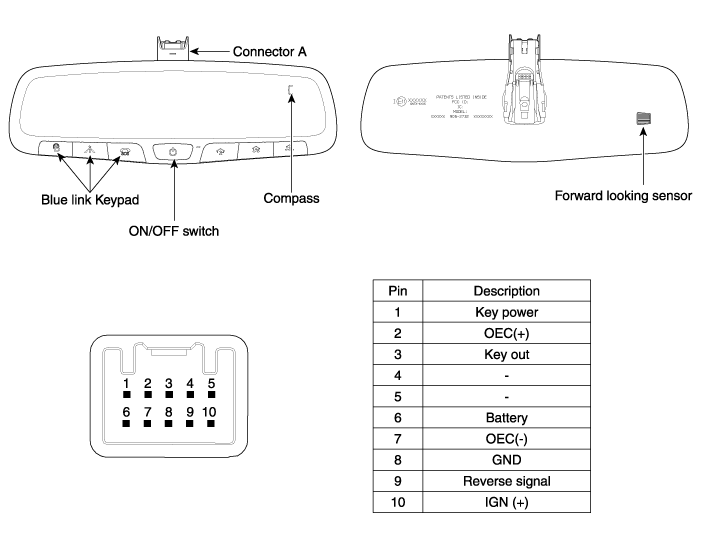

Components (1)

Components (2)
