Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Power Windows / Components and Components Location

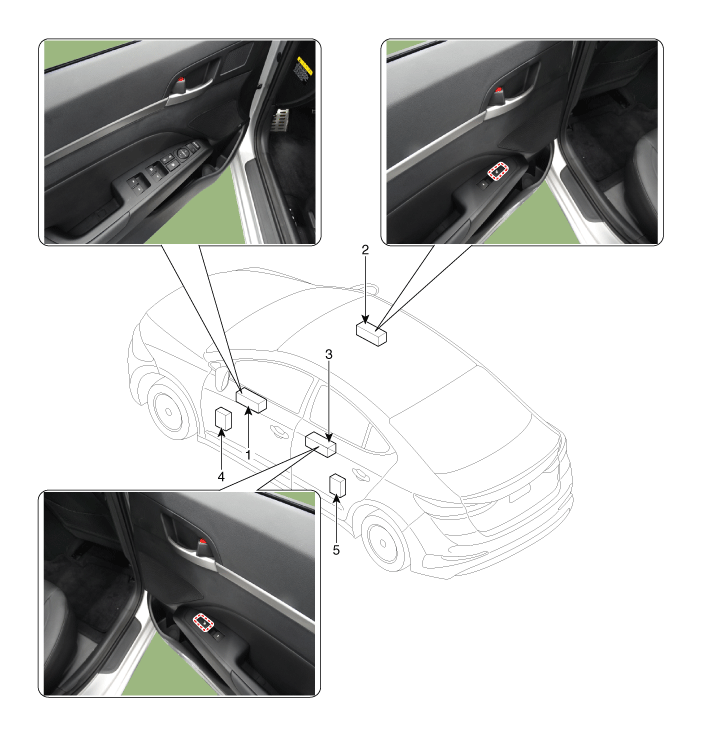

Component Location

1. DDM (Driver Door Module)
2. ADM (Assistant Door Module)
3. RRDM / RLDM (Rear Door Module)

4. Front window motor
5. Rear window motor

Description and Operation

Function Of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition When detect the force of 100N (using the 10N/ ...
