Hyundai Elantra: Power Door Locks / Components and Components Location
| Component Location |

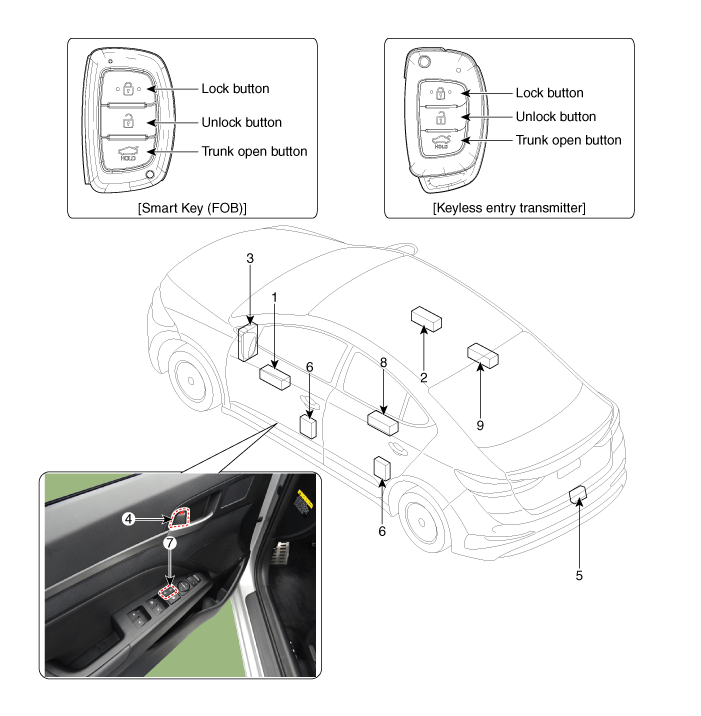

| 1. DDM (Driver Door Module) 2. ADM (Assist Door Module) 3. SJB (Smart Junction Block) 4. Door lock knob 5. Trunk lid actuator | 6. Door latch module 7. Door lock/unlock switch 8. RLDM (Rear Left Door Module) 9. RRDM (Rear Right Door Module) |
Power Door Locks
...
Power Door Lock Module Components and Components Location
Conponents
1. Door lock/unlock knob cable2. Door inside handle cable3. Door Latch
...
