Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Horn / Components and Components Location

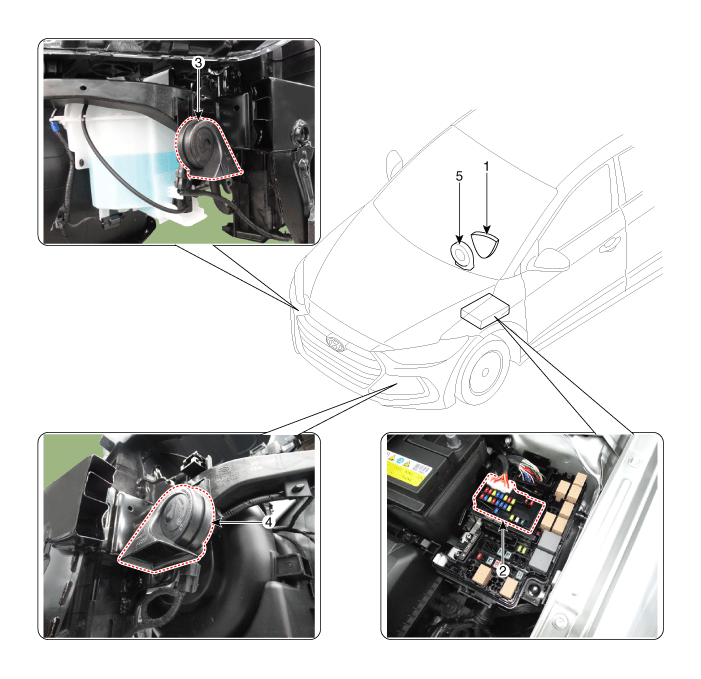

Component Location

1. Horn switch
2. Horn relay (Built - in PCB Block)
3. Horn (Low pitch)

4. Horn (High pitch)
5. Clock spring

Repair procedures

Removal 1. Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") 2. Remove the high pitch horn and low pitch horn after disconnect the horn connector (A) and loosening the mo ...
