Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Front Door / Components and Components Location

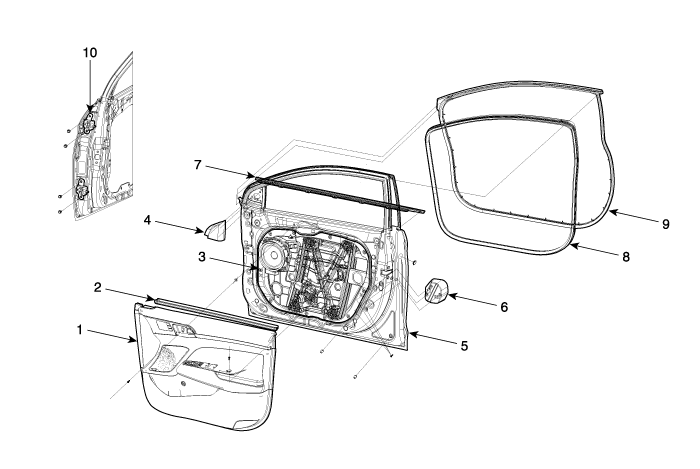

Components

1. Front door trim
2. Front door belt inside weatherstrip
3. Front door module
4. Front door quadrant inner cover
5. Front door panel

6. Front door side impact pad
7. Front door belt outside weatherstrip
8. Front door body side weatherstrip
9. Front door side weatherstrip
10. Front door hinge

Repair procedures

Adjustment Glass Adjustment • Check the glass run channel for damage or deterioration, and replace it if necessary. 1. Remove the front door trim. (Refer to Front ...
