Components

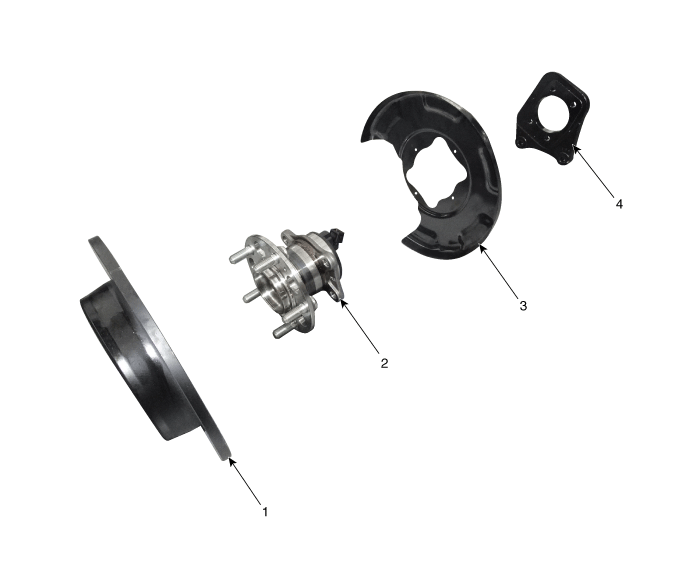

[Disc type]

1. Rear brake disc
2. Rear hub bearing
3. Backing plate
4. Bracket

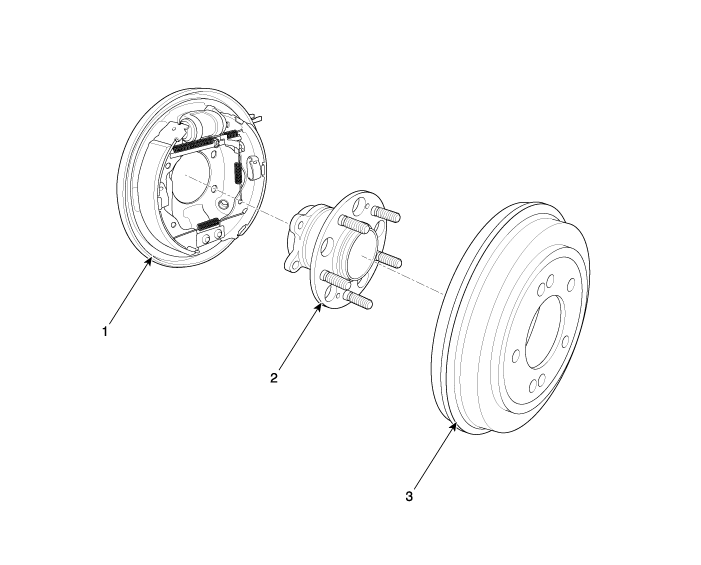

[Drum type]

1. Rear brake assembly
2. Hub & bearing assembly
3. Rear brake drum


Rear Axle Assembly
...

Rear Hub - Carrier Repair procedures
Removal [Disc type] 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear wheel and tire (A) from front hub. Tightening torque ...
